63 11 800 Replacing left LED main light module left

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2016 BMW 435i xDrive, 2016 BMW 435i, 2016 BMW 428i xDrive, 2016 BMW 428i, and 2015 BMW 435i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Attention!

Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

Necessary preliminary tasks :

Remove HEADLIGHT

Release screws (1).

Tightening torque 63 11 1AZ .

Remove LED main light module (2) from headlight (3).

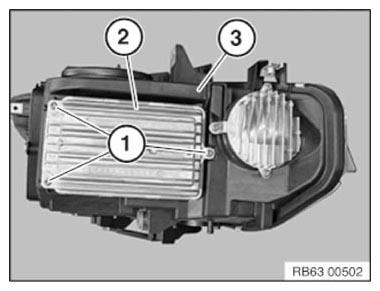

Fig 1: Identifying LED Main Light Module, Headlight And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note :

Gasket (1) for LED main light module (2) must not be damaged and must be installed free from grease.

Make sure LED main light module (2) is correctly installed.

Fig 2: Identifying LED Main Light Module And Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement :

Carry out PROGRAMMING/ENCODING .
