61 13... Special tools for wiring harness repairs

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Repair range, vehicle electrical system:

Single parts for wiring harness repairs (order via BMW)

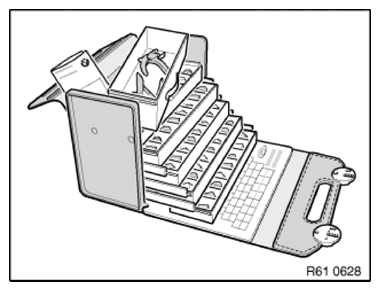

Fig 1: Identifying Repair Kit

Courtesy of BMW OF NORTH AMERICA, INC.

Release and press-out tool:

Special tool 61 0 300
Special tool 61 0 400 (MINI N12/N14)
Special tool 61 1 100 (engine)

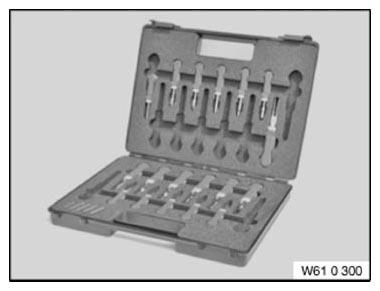

Fig 2: Identifying Special Tool Set

Courtesy of BMW OF NORTH AMERICA, INC.

Handling:

Refer to notes for OPENING CONTACTS AND LOCKS OF DIFFERENT CONNECTOR SYSTEMS

Cutting to length and stripping insulation from cables:

Wire stripper MultiStrip10 (order via BMW)

Handling:

CUTTING CABLES TO LENGTH AND STRIP INSULATION

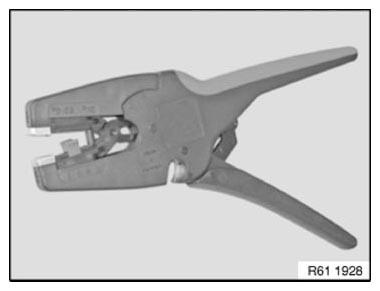

Fig 3: Cutting/Stripping Wire
Courtesy of BMW OF NORTH AMERICA, INC.

Crimping stop parts (small contacts) and butt connectors:

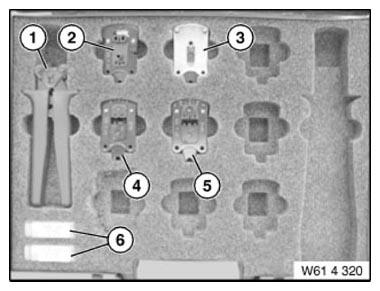

Special tool 61 4 320
1. Tool without crimping head
2. Crimping head (STRIPPING INSULATION AND CUTTING FIBRE-OPTIC CABLES TO LENGTH)
3. Crimping head (CRIMPING FIBRE-OPTIC CABLE CONTACTS)
4. Crimping head (CRIMPING MQS CONTACTS)
5. Crimping head (CRIMPING MPQ CONTACTS)
6. Replacement blade (face-cutting fibre-optic cables)
7. Replacement blade with tool (insulation stripping unit)
8. Universal crimping head

Crimping stop parts (large contacts) and butt connectors:

Special tool 61 0 200 (crimping set)
Special tool 61 0 210 (matrix set SLK 8)
Special tool 61 0 220 (matrix set SLK 2.8)
Special tool 61 0 230 (matrix set MAK 8/DFK4)
Special tool 61 0 240 (butt connector 4.0 - 6.0 mm² )

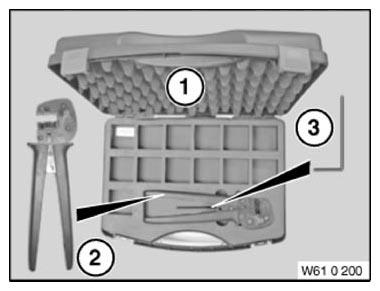

Fig 5: Identifying Crimping Stop Parts (Large Contacts)
Courtesy of BMW OF NORTH AMERICA, INC.
