66 54 511 Replacing night vision camera: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with NOTES on protection against electrostatic damage (ESD protection).

IMPORTANT: New component contains a CD with deblocking code.
Enable code CD is requested during coding/programming by the SSS.
Coding/programming without the enable code CD is not possible!

Necessary preliminary tasks:

Removing SPRAY NOZZLE FOR NIGHT VISION CAMERA

Release screws (2) on holder for camera (1).

Unclip catches (3) on camera holder (1).

Remove camera including holder (1).

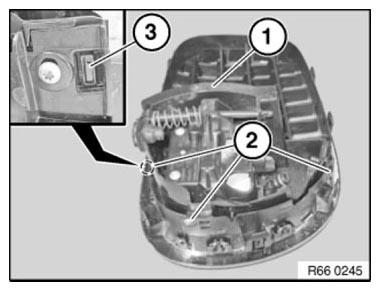

Fig 1: Identifying Latch Mechanisms On Camera Holder

G06886562

Courtesy of BMW OF NORTH AMERICA, INC.

Release lock (1) at adjusting screw (2) and press upwards in direction of arrow.

At same time twist out adjusting screw (2) and pull out complete pin with spring.

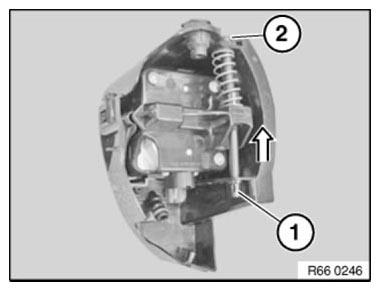

Fig 2: Pressing Lock Upward At Adjusting Screw

G06886569

Courtesy of BMW OF NORTH AMERICA, INC.

Holder (2) and fixture (3) must also be replaced when replacing camera (1).

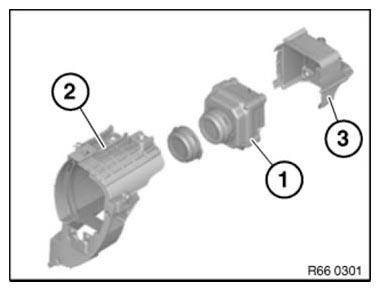

Fig 3: Identifying Holder, Fixture And Camera

G06886570

Courtesy of BMW OF NORTH AMERICA, INC.

Assembly of individual parts:

Place mount (2) on camera.

Tighten screws (1).

Tightening torque: see 1AZ in 66 54 NIGHT VISION CAMERA .

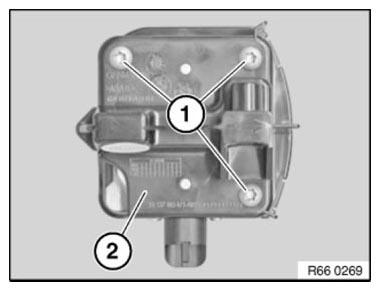

Fig 4: Identifying Mount On Camera With Screws

G06886571

Courtesy of BMW OF NORTH AMERICA, INC.

Insert camera (2) with mount in holder.

Retaining lugs (1) on the mount must engage correctly in the guides on the holder (3).

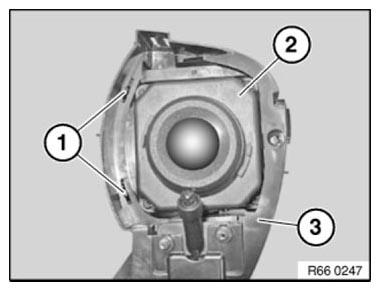

Fig 5: Identifying Camera And Lugs With Mount In Holder

G06886572

Courtesy of BMW OF NORTH AMERICA, INC.
