37 00... Checking air springs for damage
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
If a vehicle has been driven with depressurized air springs, the air springs must always be replaced.
Checking air spring strut on rear axle:
Necessary preliminary tasks:
- Undo AIR SPRING STRUT on wheel carrier
Do not release air spring strut in the upper wheel arch!
Air spring strut is damaged:

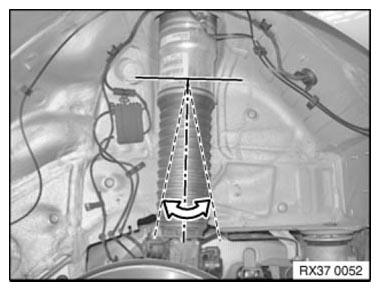

- if pressing the lower spring strut eye moves the lower section of the spring strut (gaiter) in longitudinal direction toward the spring strut upper section (see illustration)
