33 10... Removing and installing/replacing left or right servomotor

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Scalding hazard!
This work may only be carried out on an exhaust system which has cooled down.

IMPORTANT: Remove servomotor only after being prompted to do so by diagnosis system.

Necessary preliminary tasks:

Replacement only: Start INITIAL OPERATION and follow instructions on screen.

Release screws (1) and remove heat shield (2).

Installation:

Clean thread to remove all remnants of screw securing adhesive.

Make sure wiring harness (3) is correctly seated on rear differential.

Stick in new screws.

Tightening torque 33 11 4AZ .

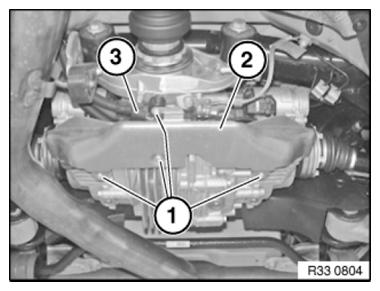

Fig 1: Identifying Heat Shield, Wiring Harness And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Release screws (2) and remove servomotor (3).

Installation:

Tightening torque 33 11 5AZ .

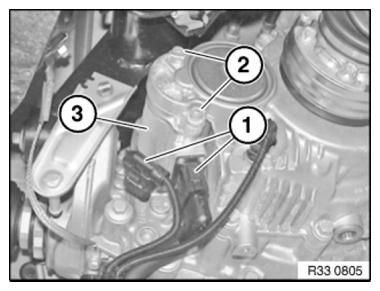

Fig 2: Identifying Servomotor, Plug Connections And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: During replacement, only the correct servomotor (left/right) may be fitted!

Installation:

Replace O-ring (1).

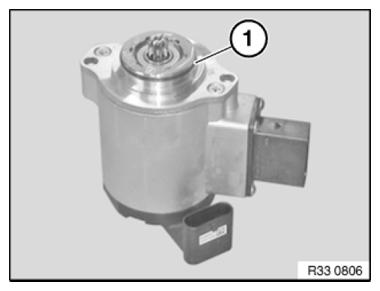

Fig 3: Identifying O-Ring

Courtesy of BMW OF NORTH AMERICA, INC.

After installation

Correct OIL LEVEL .
Replacement only: Continue INITIAL OPERATION .
