33 32 153 Removing and installing/replacing front compression strut
WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Observe SAFETY INSTRUCTIONS
for raising the vehicle
Driving without compression struts is not permitted!
Driving without compression struts is not permitted!
Necessary preliminary tasks
- Remove UNDERBODY PANELLING (REAR SECTION) .

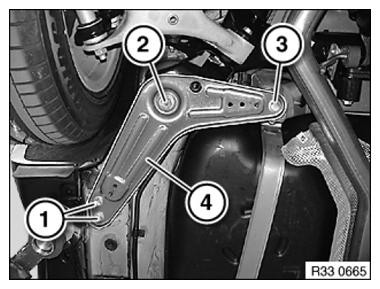

Release screws (1).
Tightening torque 33 33 2AZ .
Release screw (3).
Tightening torque 33 33 2AZ .
Release screw (2) and remove compression strut (4).
Secure rear axle carrier by inserting screw (2).
Installation:
Check threads for damage; if necessary, repair with HELICOIL THREAD INSERTS .
Tightening torque 33 33 1AZ .
