52 26... Removing and installing inner follower trim

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Partially detach seat cover . See 52 26 400 REPLACING SEAT COVER FOR LEFT REAR SEAT or 52 26 400 REPLACING SEAT COVER FOR RIGHT REAR SEAT

Trim, follower, inner:

Release screw.

Unclip trim (1) in direction of arrow and remove.

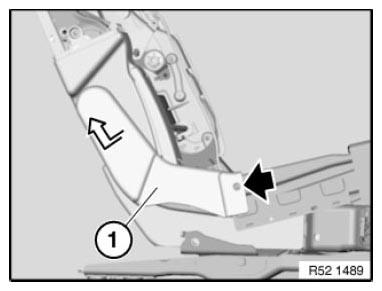

Fig 1: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.
