66 31 006 Removing and installing (replacing) ACC sensor

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work

Remove the ornamental GRILLE FOR THE BUMPER TRIM (CENTRE) .

Undo screws in marked area on the rear side of the ACC sensor (1).

Tightening torque 66 31 1AZ.

Remove ACC sensor from holder (1).

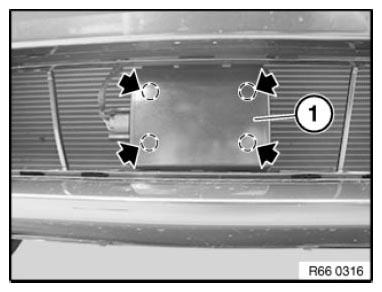

Fig 1: Locating ACC Sensor Holder Screws

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Secure ACC sensor (2) against falling out.

Unfasten plug connection (1) and disconnect.

Remove ACC sensor (2).

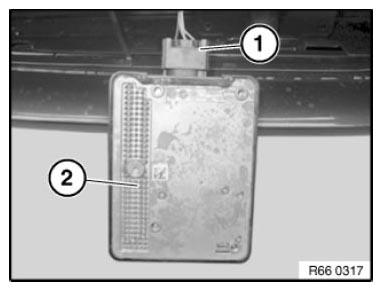

Fig 2: Identifying ACC Sensor And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

After installation

If applicable, ADJUST THE ACC SENSOR .

Replacement

Carry out VEHICLE PROGRAMMING AND ENCODING .
ADJUSTING ACC SENSOR .

Necessary preliminary tasks

Remove the ornamental GRILLE FOR THE BUMPER PANEL (CENTRE) .

Loosen screws in marked area on the rear side of the ACC sensor (1).

Tightening torque 66 31 1AZ.

Unfasten plug connection (2) and disconnect.

Remove ACC sensor (1).

Fig 1: Identifying ACC Sensor And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

After installation

If applicable, ADJUST THE ACC SENSOR .

Replacement

Carry out VEHICLE PROGRAMMING AND ENCODING .
ADJUSTING ACC SENSOR .
