23... Universal BMW transmission take-up: Notes

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 2 030
23 4 050

NOTE:

The universal transmission bracket is introduced for the E60 AWD
Suitable for manual and automatic transmissions

IMPORTANT: Front and rear supports (1) can be laterally adjusted by means of screws (2).
Carrier (3) of rear supports (1) can be longitudinally adjusted by means of screw.
Supports must be adapted in length and width to the transmission.

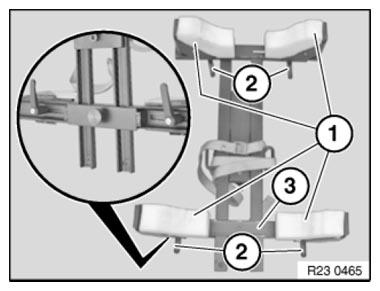

Fig 1: Identifying Carrier, Screw, Front And Rear Supports

Courtesy of BMW OF NORTH AMERICA, INC.
