37 11 030 Removing and installing front left or right spring strut

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove FRONT WHEEL
Remove upper wishbone . See 31 12 002 REMOVING AND INSTALLING/REPLACING TOP LEFT WISHBONE or 31 12 003 REMOVING AND INSTALLING / REPLACING TOP RIGHT WISHBONE from swivel bearing.
Remove ANTI-ROLL BAR LINK FROM SPRING STRUT .

IMPORTANT: Risk of damage!
Secure spring strut against falling out.

Release screws (1).

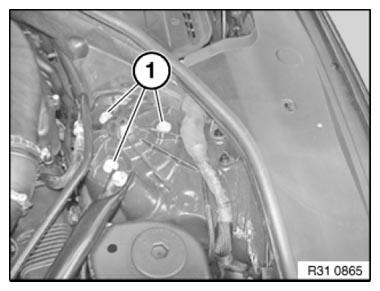

Fig 1: Identifying Spring Strut Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Turn support bearing in direction of travel up to stop in clockwise direction and tighten.

Clean contact surface in spring strut dome.

Tightening torque 31 31 1AZ.

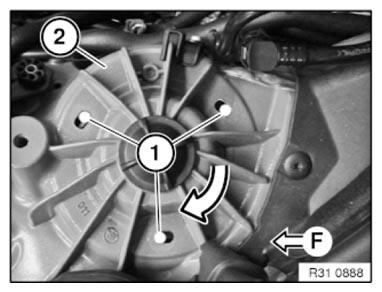

Fig 2: Turning Support Bearing In Direction Of Travel

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Disconnect feed line (2) from mounting.

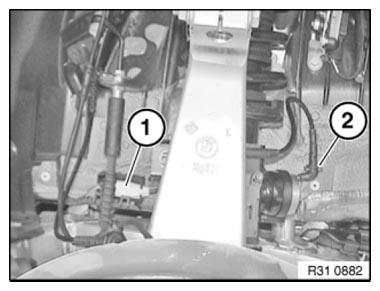

Fig 3: Identifying Feed Line And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Release nut (1) and remove screw.

Release spring strut from wishbone (2).

Installation note:

Replace screw and nut.

Note direction of insertion of screw.

Adhere to the assembly sequence.

Tightening torque 31 12 7AZ.

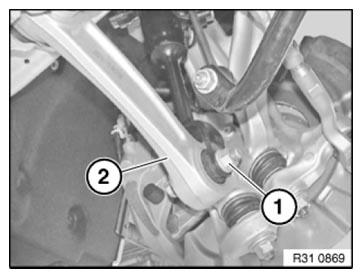

Fig 4: Identifying Spring Strut Wishbone And Mounting Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Remove spring strut downwards out of wheel arch.

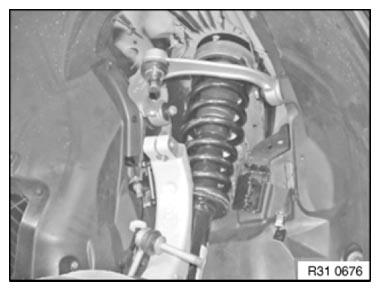

Fig 5: Identifying Front Spring Strut With Springs And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
