86 10... Disassembly of loading ramp frame/disassembly of rail, left/right: Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Tightening Torque, 86 10 7AZ.

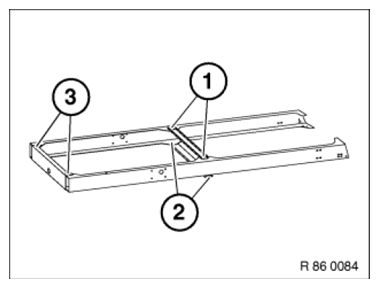

Fig 1: Identifying Ramp Frame With Cross-Strut And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1, 2) on left and right sides of loading ramp frame (3).

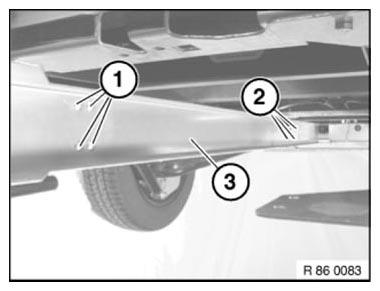

Fig 2: Identifying Ramp Frame With Cross-Strut And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Use new self-locking nuts.

Tightening Torque, 86 10 8AZ.

Fig 1: Identifying Ramp Frame With Screws (Left And Right Sides)

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1, 2, 3).

Use new self-locking nuts.

Tightening Torque, 86 10 9AZ.
