61 13... Crimping stop parts

WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Spare parts for in-car electronics (housing and contacts)

1. Crimping butt connectors and contact sleeves for fan connectors up to 2.5 mm

2. Crimping butt connectors and contact sleeves for fan connectors larger than 2.5 mm 2

3. Crimping contact sleeves for 4 mm ² fan connectors and ignition cable contacts

Use special tool kit 12 1 080 to attach ignition cable contacts and crimp 4 mm² contact sleeves for fan connectors.

12 1 081 (hand pliers)
12 1 083 (nest)

See repair instructions

SPECIAL TOOLS FOR WIRING HARNESS REPAIRS.

Fig 1: Identifying Hand Pliers (12 1 081) And Nest (12 1 083)

Courtesy of BMW OF NORTH AMERICA, INC.

Release special tool 12 1 081:

Squeeze grips (1) lightly and push unlocking lever (2) in direction of arrow.

Or:

Compress handles as far as they will go, tool unlocks automatically.

Fig 2: Pushing Unlocking Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Place 4 mm² contact sleeve in nest with anti-twist safeguard (1) as far as possible.

Fig 3: Locating Contact Sleeve With Anti-Twist Safeguard

Courtesy of BMW OF NORTH AMERICA, INC.

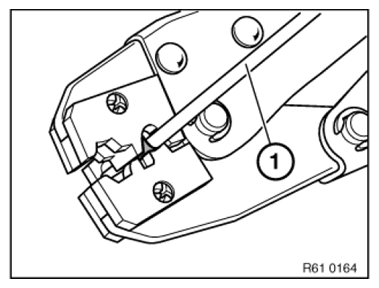

Preload contact by squeezing matrix in crimping tool. Grip contact (1) firmly only, do not crimp.

Fig 4: Griping Contact

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Follow procedure for CUTTING AND STRIPPING INSULATION from cables.

Insert stripped end of wire (7) in the contact. Ensure insulation and stripped wire end are correctly laid in contact.

Compress crimping tool as far as it will go.

Crimping tool unlocks automatically.

Take contact out of crimping tool.

Fig 5: Compressing Crimping Tool Over Striped Wire End

Courtesy of BMW OF NORTH AMERICA, INC.

4. Checking crimping

Check insulation crimp (8) and wire crimp (9) against following illustrations to ensure crimps are correctly located.

NOTE: Illustration shows butt connectors and contact sleeves for fan connectors knocked on one side. The crimping procedure is identical here.

Fig 6: Identifying Insulation Crimp And Wire Crimp

Courtesy of BMW OF NORTH AMERICA, INC.

Correct crimping:

Visible conductor end (10).

Visible insulation end (11).

Fig 7: Identifying Conductor And Insulator Ends

Courtesy of BMW OF NORTH AMERICA, INC.

Incorrect crimping:

Conductor end (10) inserted too far.

Insulation end (11) in wire crimp.

If necessary, repeat crimping with a new contact.

Fig 8: Identifying Incorrect Crimping Procedure

Courtesy of BMW OF NORTH AMERICA, INC.

Incorrect crimping:

Conductor end (10) not visible.

Insulation end (11) not visible.

If necessary, repeat crimping with a new contact.

Fig 9: Identifying Incorrect Crimping Procedure

Courtesy of BMW OF NORTH AMERICA, INC.
