33 32... Overview of steering links

WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

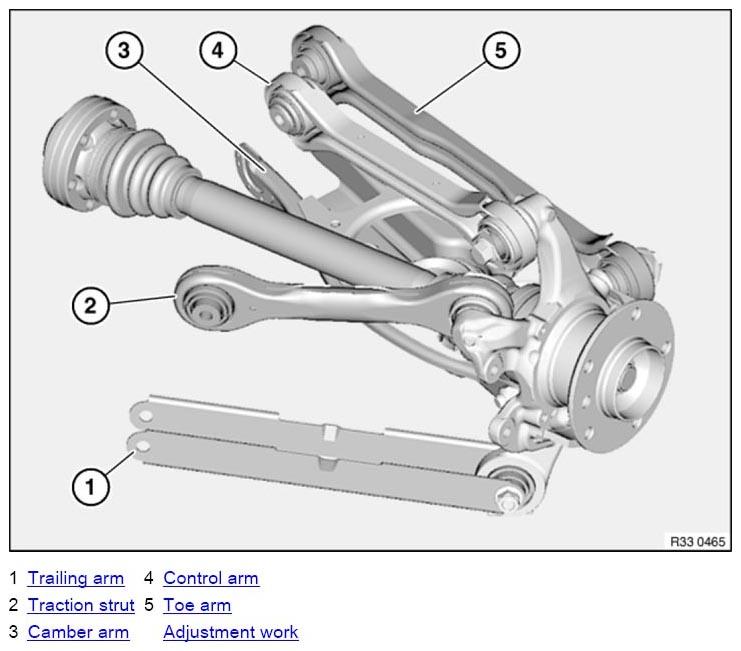

Fig 1: Overview Of Steering Links
G06921771Courtesy of BMW OF NORTH AMERICA, INC.
  1. Trailing arm
  2. Traction strut
  3. Camber arm
  4. Control arm
  5. Toe arm Adjustment work
