33... Rear axle layout

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 BMW 328i, 2011 BMW 323i, 2010 BMW 335i, 2010 BMW 328i, and 2010 BMW 323i. However, it is still accessible from the selected car via links, so may be relevant.

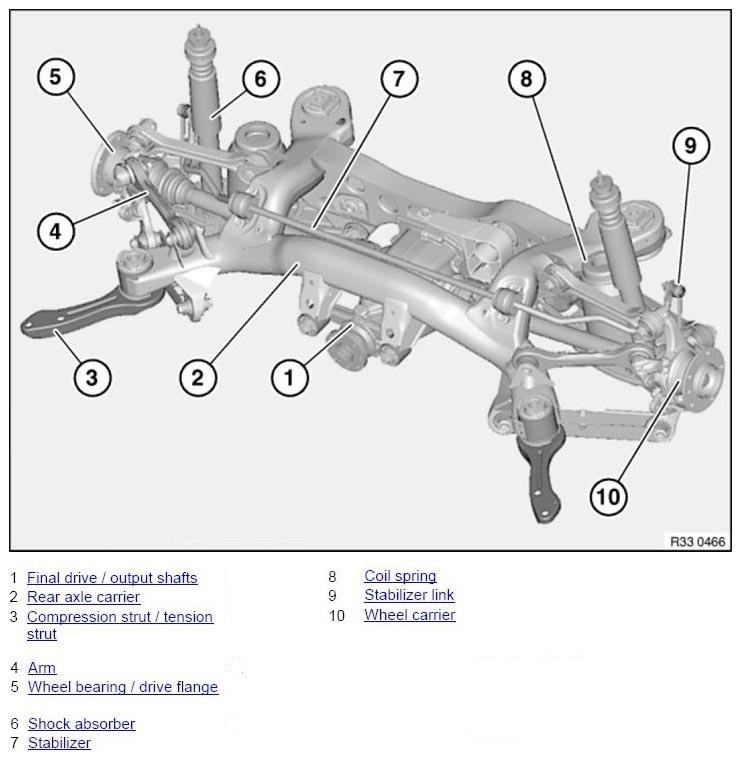

Fig 1: Rear Axle Layout
G06903020Courtesy of BMW OF NORTH AMERICA, INC.
