63 11... Installing headlight repair kit

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove HEADLIGHT .

NOTE:

Damaged retaining tabs (1, 2, 3) can be replaced with the repair kit.

Replacement of headlight is not required!

If necessary, use screws from BMW Parts Department 7 225 228 repair kit.

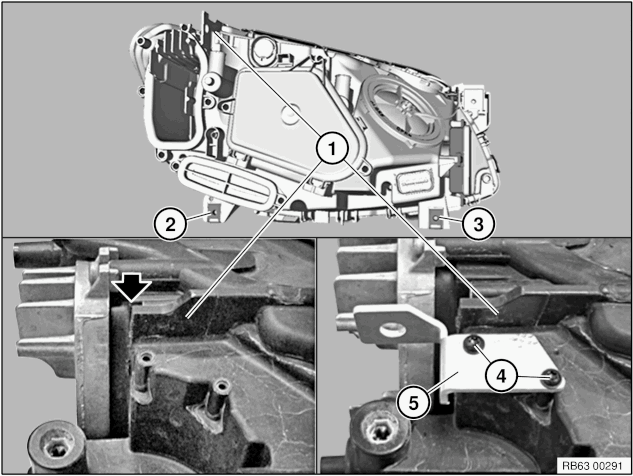

Fig 1: Identifying Headlight Holder, Screws, And Retaining Tabs

G00523551

Courtesy of BMW OF NORTH AMERICA, INC.

Retaining tab 2 of first image:

Remove damaged retaining tab (1) as shown.

Fit holder (3) and secure with screws (4).

Slide clamp (2) onto holder (3).

Retaining tab 3 of first image:

Remove damaged retaining tab (5) as shown.

Fit holder (7) and secure with screws (8).

Slide clamp (6) onto holder (7).

NOTE: If necessary, drill out screw holes in holder.

After installation:

Adjust HEADLIGHTS .

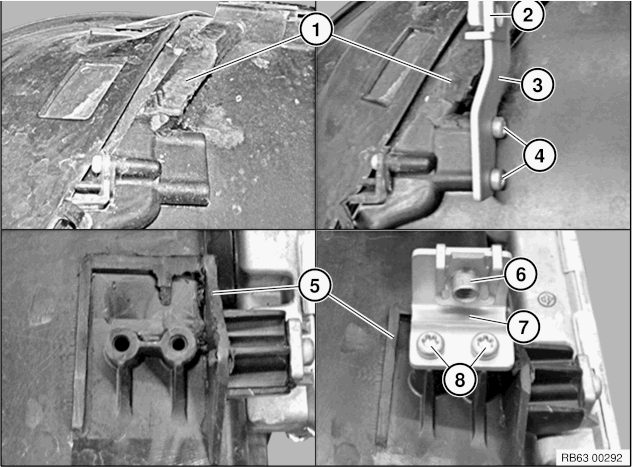

Fig 2: Removing Damaged Retaining Tabs And Installing Holder With Clamp

G00523552

Courtesy of BMW OF NORTH AMERICA, INC.
