86 10... Replacing drawbar members, left and right: Installation

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Tightening Torque, 86 10 16AZ

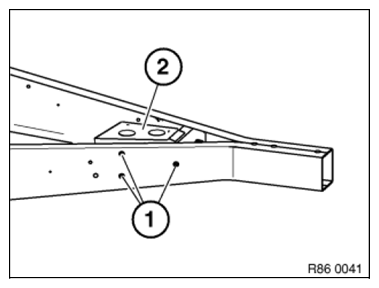

Fig 1: Identifying Screws On Cross-Member

G06886851

Courtesy of BMW OF NORTH AMERICA, INC.

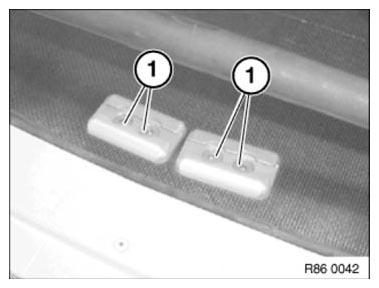

Release countersunk head screws (1) and remove.

Tightening Torque, 86 10 3AZ

Fig 1: Identifying Countersunk Head Screws

G06886852

Courtesy of BMW OF NORTH AMERICA, INC.

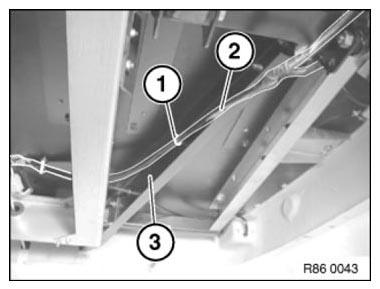

Remove cable holder (1) and remove wiring harness (2) from drawbar member (3).

Fig 2: Identifying Cable Holder With Wiring Harness On Drawbar Member

G06886853

Courtesy of BMW OF NORTH AMERICA, INC.

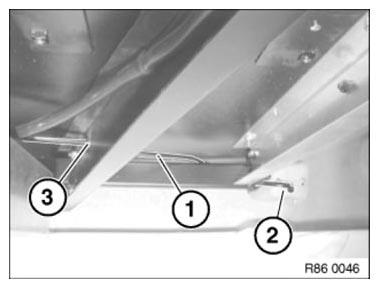

Remove cable (1) from position light housing (2). Pull out cable (1) through drawbar member aperture (3).

Fig 3: Identifying Cable, Light Housing And Drawbar Member Aperture

G06886854

Courtesy of BMW OF NORTH AMERICA, INC.

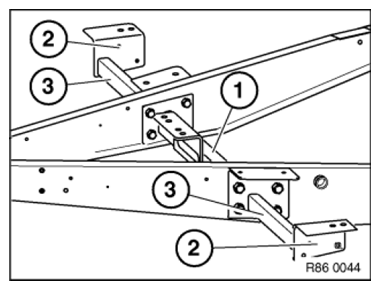

Release all screws on cross-member (1) and remove cross-member (1).

If necessary, release screws on mounting brackets (2) and remove cross-members (3).

Use new self-locking nuts.

Tightening Torque, 86 10 17AZ

Fig 1: Identifying Cross-Members With Screws On Mounting Brackets

G06886855

Courtesy of BMW OF NORTH AMERICA, INC.

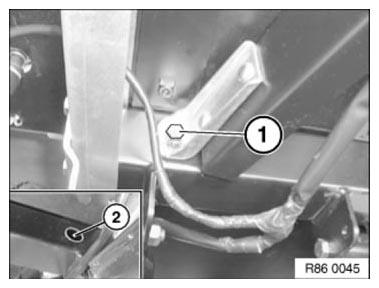

Unscrew bolt (1). Grip nut from rear through assembly hole (2) in crossmember.

Use new self-locking nuts.

Tightening Torque, 86 10 18AZ

Fig 1: Identifying Rear Through Assembly Hole In Crossmember With Bolt

G06886856

Courtesy of BMW OF NORTH AMERICA, INC.

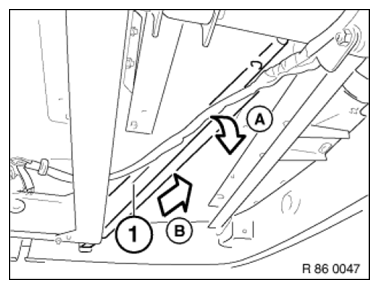

Tilt drawbar member (1) down in direction of arrow A and pull out towards rear in direction of arrow B.

Fig 2: Tilting Drawbar Member

G06886857

Courtesy of BMW OF NORTH AMERICA, INC.
