63 11 800 Replacing left LED main light module left

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Read and comply with notes on protection against electrostatic damage (ESD protection). See 61 35... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) ).

Necessary preliminary tasks:

Remove left headlight with LED technology .

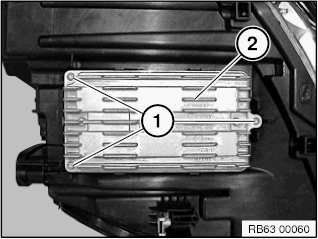

Release screws (1). Tightening torque 1.6 Nm. Remove LED main light module (2).

Fig 1: Identifying LED Main Light Module And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note: Gasket (1) for LED main light module (2) must not be damaged and must be installed free from grease.

Make sure LED main light module (2) is correctly installed.

Fig 2: Gasket For LED Main Light Module

Courtesy of BMW OF NORTH AMERICA, INC.
