37 00... Checking air springs for damage

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If a vehicle has been driven with depressurized air springs, the air springs must always be replaced.

Lift vehicle.

Air spring is OK:

when the gaiter cannot be pressed in by hand
when no visible damage (e.g. kinks, cracks, porous areas, etc.) is discernible
when the rolling fold is uniform

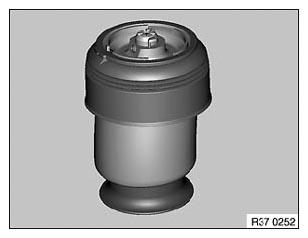

Fig 1: Identifying Air Spring

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: If one of the above-mentioned points fails the test, then the AIR SPRING must be replaced.
