41 11... Removing And Installing Left And Right Holders For Cross-Strut

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove right intercooler . See 17 51 001 REMOVING AND INSTALLING/REPLACING RIGHT INTERCOOLER (N63) .

NOTE: Shown without assemblies for purposes of clarity.
An angle drill is required to perform the task.

Following parts are required:

blind rivet nuts (41 12 8 223 082)
screws M6 x 20
nuts M6
plain washers

Carry over the work step shown symmetrically to the other side of the vehicle.

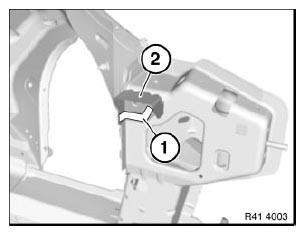

Drill out 3 welded spots in area (1). In so doing, drill through holder (2) and sheet directly behind.

Take off holder (2).

Fig 1: Identifying Welded Spots Area

G06179240

Courtesy of BMW OF NORTH AMERICA, INC.

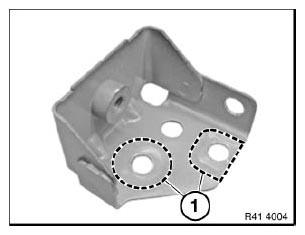

Smooth moldings in area of welded spots (1).

Fig 2: Identifying Welded Spots Area

G06179241

Courtesy of BMW OF NORTH AMERICA, INC.

Carry over the work step shown symmetrically to the other side of the vehicle.

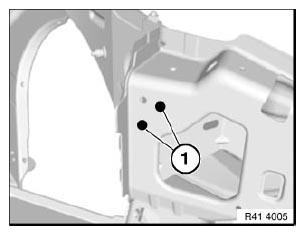

Drill out 2 bores (1) on body to 9 mm dia.

Carry out corrosion protection measures on drilled holes (body and holder).

Fig 3: Identifying Drilled Holes

G06179242

Courtesy of BMW OF NORTH AMERICA, INC.

Carry over the work step shown symmetrically to the other side of the vehicle.

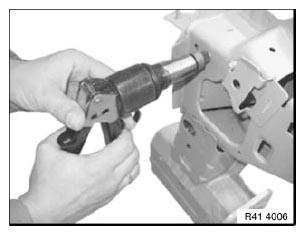

Set 2 blind rivet nuts (1) M6 with rivet gun.

Fig 4: Identifying Blind Rivet Nuts

G06179243

Courtesy of BMW OF NORTH AMERICA, INC.

Carry over the work step shown symmetrically to the other side of the vehicle.

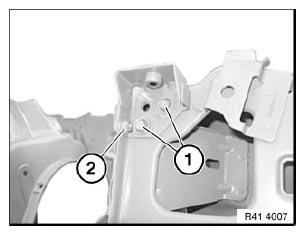

Screw down holder in areas (1) with 2 screws and plain washers.

In area (2) screw down holder with screw, nut and plain washers.

Fig 5: Identifying Holder Nut

G06179244

Courtesy of BMW OF NORTH AMERICA, INC.
