33 17... Replacing rubber mount (with hydraulic damping)

WARNING: This page is about a different car, the 2010 BMW 135i, 2009 BMW 135i, and 2008 BMW 135i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

33 4 281
33 4 351
33 4 357
33 4 358
33 4 465
33 4 466

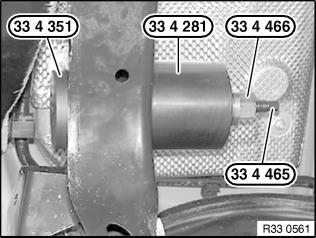

Pulling out rubber mount: Pull out rubber mount with special tools 33 4 351, 33 4 281, 33 4 466 and 33 4 465.

Fig 1: Pulling Out Rubber Mount

Courtesy of BMW OF NORTH AMERICA, INC.

Installing rubber mount: Important! Coat bearing bush in rear axle support and new rubber mount with Circo Light.

Draw in rubber mount with end shown from front into rear axle carrier. In so doing, make sure that the arrows on the rubber mount point upwards.

Fig 2: Installing Rubber Mount

Courtesy of BMW OF NORTH AMERICA, INC.

Align special tool 33 4 358 with rubber mount using openings.

Fig 3: Align Special Tool 33 4 358 With Rubber Mount Using Openings

Courtesy of BMW OF NORTH AMERICA, INC.

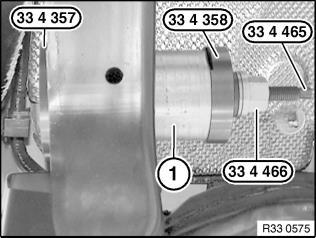

Pull on rubber mount (1) with special tools 33 4 357, 33 4 358, 33 4 466 and 33 4 465 as far as it will go.

Fig 4: Pull On Rubber Mount (1) With Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.
