61 35 950 Removing And Installing (Replacing) Control Unit For Comfort Access System

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection) .

Necessary preliminary tasks:

Remove right luggage compartment wheel arch trim . See 51 47 161 REMOVING AND INSTALLING/REPLACING RIGHT LUGGAGE COMPARTMENT WHEEL ARCH TRIM .

Disconnect plug connection (1).

Pull control unit for comfort access system (2) in direction of arrow out of device mount (3).

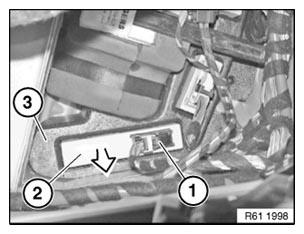

Fig 1: Pulling Control Unit For Comfort Access System

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out vehicle programming/coding .
