61 31 492 Replacing Level Switch For Windshield Washer System
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Release fluid reservoir for windshield washer system and pull out. See.

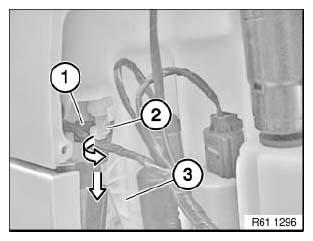

Disconnect plug connection (1).
Turn level switch for windshield washer system (2) in direction of arrow and remove towards bottom from fluid reservoir for windshield washer system (3).
