66 31 001 Adjusting ACC sensor

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 528xi, 2010 BMW 528i, 2009 BMW 528xi, 2009 BMW 528i, and 2008 BMW 528xi. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

36 1 100 .
36 1 130 . See WHEEL AND TIRES - SPECIAL TOOL .

IMPORTANT: Check ease of movement of adjustment screws prior to adjustment.
Pull-off torque of adjustment screws must not exceed 4 Nm.
Cover the lens to prevent it from coming into contact with rust remover.
Spray adjustment screws with rust remover, then repeat check after rust remover has taken effect.
If the pull-off torque is greater than 4 Nm, observe instructions on replacing adjustment screws.

Lever out cap (1).

Carry out adjustment of ACC sensor (2) with special tool 36 1 130 by means of adjusting screws (3).

Fig 1: Identifying ACC Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Special tool required:

Active Cruise Control ACC adjusting device, complete.

Order number: 81 10 0 021 292

Consisting of:

Mirror, complete
Wheel laser
Slotted diaphragm
Control bracket (for initial installation of rail)
Rail
Setup and Owner's Handbook (not shown)

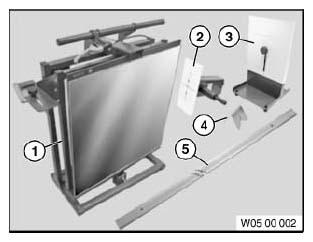

Fig 2: Cruise Control ACC Adjusting Device

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: A holder which is not included in the scope of delivery is required to support the wheel laser. Use either the quick-action clamp from the existing KDS or ACC wheel holder (36 1 100 ).

NOTE:

Follow instructions for ACC adjusting device.

NOTE: To adjust the ACC sensor, connect the BMW diagnosis system and fit the ACC adjusting device.
Select ACC system in diagnosis. Start test module "ACC adjustment" (service functions) and proceed in accordance with instructions.
Handle ACC adjusting device in accordance with mounting and Owner's Handbook provided with device.
