64 53 ... Replacing Valve Insert For Refrigerant Line

WARNING: This page is about a different car, the 2010 BMW X5, 2009 BMW X5, 2008 BMW X5, and 2007 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Avoid contact with refrigerant and refrigerant oil.
Follow safety instructions for handling refrigerant R 134a . See 64 50 ... INSTRUCTIONS FOR HANDLING REFRIGERANT R 134A .
Follow safety instructions for handling refrigerant oil . See 64 50 ... INSTRUCTIONS FOR HANDLING REFRIGERANT OIL (FOR REFRIGERANT R 134A) .

IMPORTANT: Risk of damage
Restart engine only when A/C system has been correctly filled.
If A/C system is opened for more than 24 hours: Replacing drier insert for A/C system . See 64 53 517 REPLACING DESICCANT INSERT FOR A/C SYSTEM .

NOTE: The special tool is available under BMW order number: 81 34 0 427 679 from the BMW workshop equipment catalogue.

Necessary preliminary tasks:

Drawing off, evacuating and filling the A/C system are not included in the time value given for this work operation. See 64 50 009 DRAWING OFF, EVACUATING AND FILLING A/C SYSTEM (R 134A) .

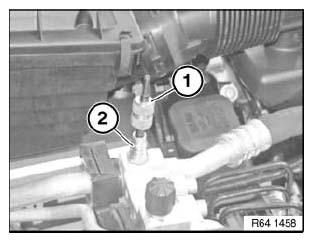

Twist valve insert out of filler neck (2) with remover (1).

Installation:

Screw in valve insert hand-tight only.

Fig 1: Identifying Filler Neck With Remover

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Evacuate and fill A/C system . See 64 50 009 DRAWING OFF, EVACUATING AND FILLING A/C SYSTEM (R 134A) .
Check leak-tightness of valve insert with soapy solution
In event of leakage:
- Evacuate A/C system. See 64 50 009 DRAWING OFF, EVACUATING AND FILLING A/C SYSTEM (R 134A) .
- Check sealing faces on line and valve insert for damage, replace line or valve insert if necessary
