Cable Set For Test Box (M04 04 12)
Publication date: 2012-04-01Reference number: M04 04 12
CABLE SET FOR TEST BOX
TECHNICAL SERVICE BULLETIN
Reference Number(s): SI M04 04 12, Date of Issue:
April 2012
| MINI: | All Models |
| GROUP: | Tools and Equipment |
SUBJECT
Cable Set for Test Box
SITUATION
At the end of production of the GT1, the measuring cables with a 2 mm connector were no longer available. A new cable set with a 2 mm connector is now available.
Distribution of the following tool will NOT be through the Automatic Tool Shipment Program. Tools may be purchased through your RDC. All prices in this bulletin are introductory prices and are subject to change.

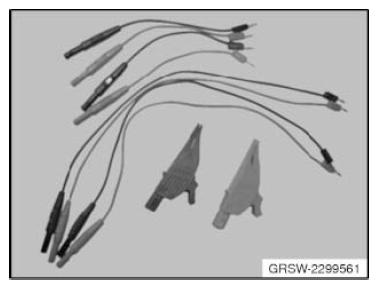

Test Cable Set
Order P/N: 83 30 2 299 561
Price. $70.64
The wiring harness simplifiesthe measurements on the test boxes: 61 4 380/381; 61 4 390.
Contents:
2 x cable, red, 200 mm length
2 x cable, black, 200 mm length
2 x cable, red, 400 mm length
2 x cable, black, 400 mm length
1x Alligator clip, red
1x Alligator clip, black
