65 90 550 Replacing CD/DVD Drive For Navigation Computer

Special Tools Required:

• 00 9 318

Comply with notes and instructions on handling navigation computers. Refer to 65 90 ... NOTES ON HANDLING NAVIGATION COMPUTERS .

Replace the destroyed seal on all devices with the new seal supplied.

Necessary Preliminary Tasks:

• Remove navigation computer. Refer to 65 90 511 REMOVING AND INSTALLING (REPLACING) NAVIGATION COMPUTER WITH CD DRIVE .

MK II Version:

Cut through seal (1).

Release screws (2) on both sides and carefully fold down front panel (3).

Installation:

Replace the destroyed seal with the new seal supplied.

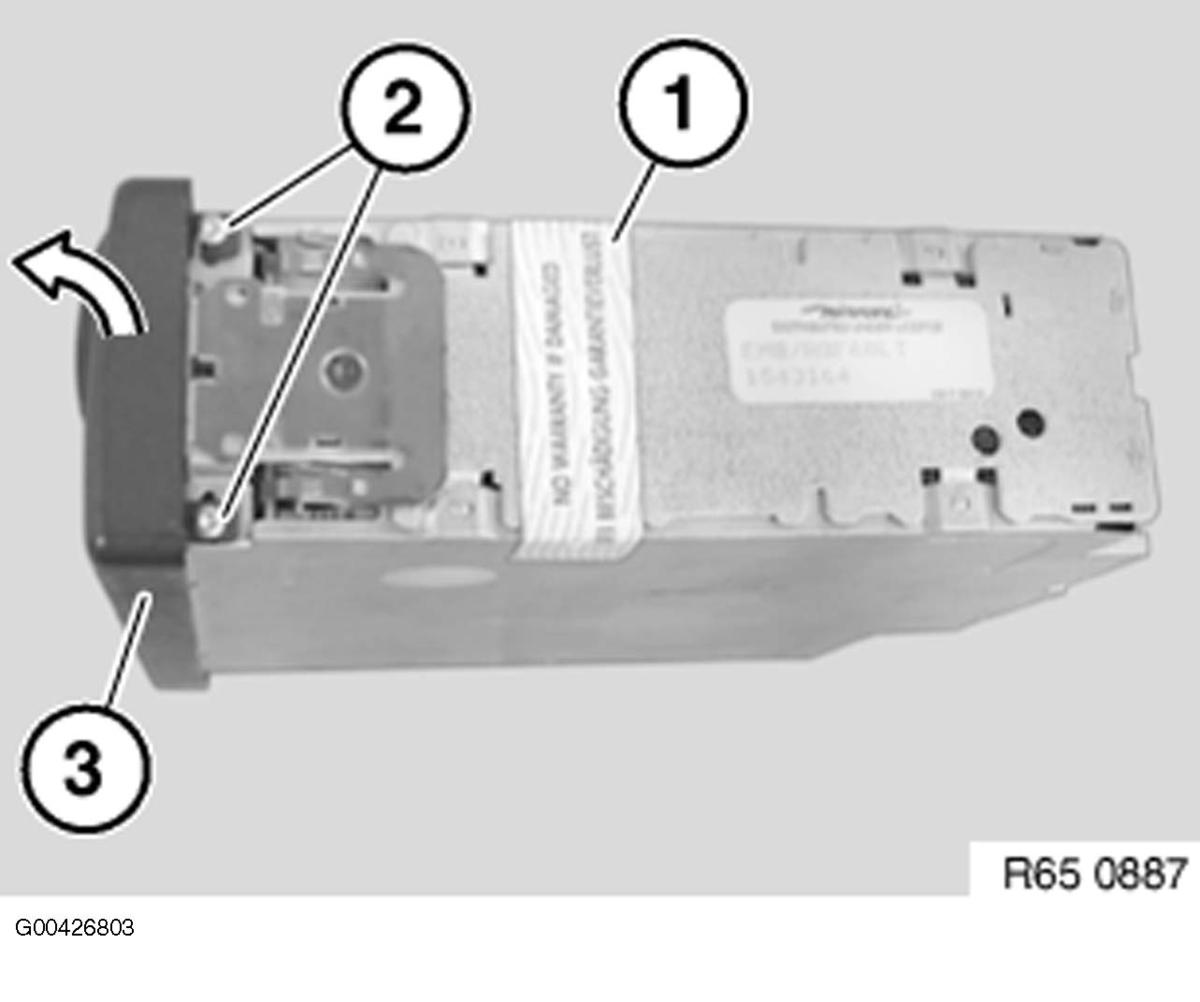

Fig 1: CD Drive Seal, Retaining Screws, Front Panel And Removal Direction
