Caliper Assembly: Installation

WARNING: This page is about a different car, the 2003 BMW Z8 and 2002 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

To install, reverse removal procedure. Tighten caliper mounting bolts to specification. See TORQUE SPECIFICATIONS . Bleed hydraulic system.

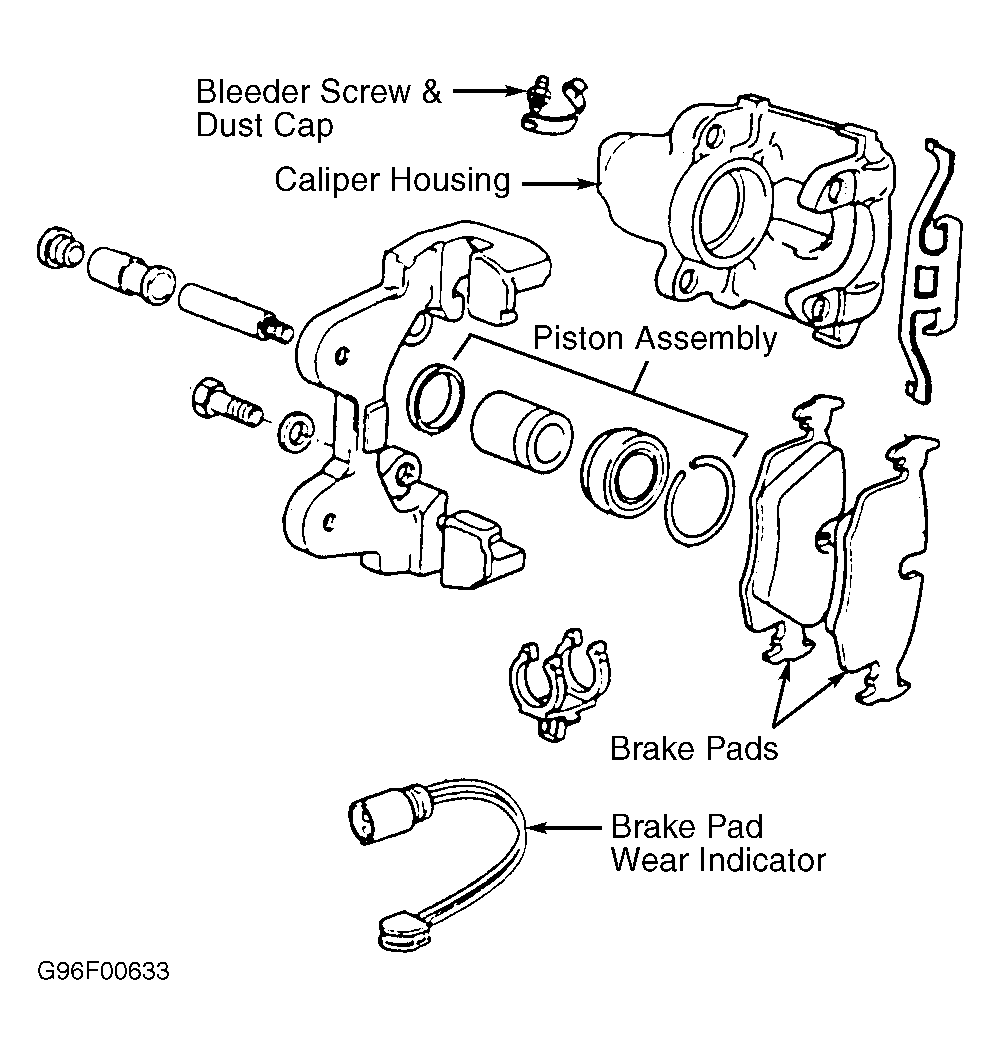

Fig 1: Exploded View Of Single Piston Caliper
G92F00633Courtesy of BMW OF NORTH AMERICA.
