61 13... Circular connector, 20-pin, system D2.5

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

61 0 303

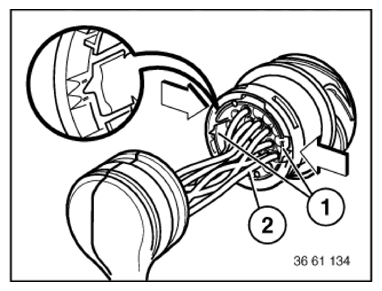

Carefully press back retaining tabs (1) of internal connector (2).

Fig 1: Pressing Back Retaining Tabs Of Internal Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Turn internal connector (2) until retaining lugs (1) snap into release groove (3).

Fig 2: Turning Internal Connector Until Retaining Lugs Snap Into Release Groove

Courtesy of BMW OF NORTH AMERICA, INC.

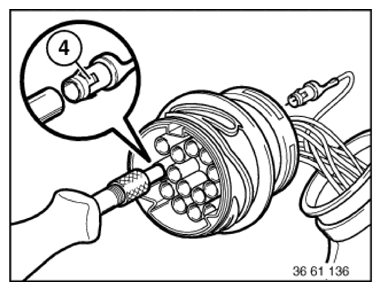

With special tool 61 0 303 press down retaining hook (4) of corresponding contact and pull out cable.

Fig 3: Pressing Retaining Hook With Special Tool (61 0 303)

Courtesy of BMW OF NORTH AMERICA, INC.
