65 90 511 Removing And Installing/Replacing Navigation Computer With CD/DVD Drive (Long Version)

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT:

Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) !

Necessary preliminary tasks:

Remove LEFT LUGGAGE COMPARTMENT TRIM on side panel

Pull navigation computer (1) with special tool 65 5 400 out of mounting and disconnect associated plug connections.

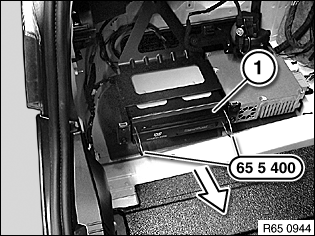

Fig 1: Removing Navigation Computer Using Special Tool 65 5 400

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out PROGRAMMING/CODING .
