Attach wire pull handles

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Feed in cutting wire (1) in cutting handle (2) and clamping element (3) as illustrated.

Move back cutting handle (2) over clamping element (3) and trap wire end (4).

Danger of injury!

Wire end (4) must not protrude out of cutting handle (2).

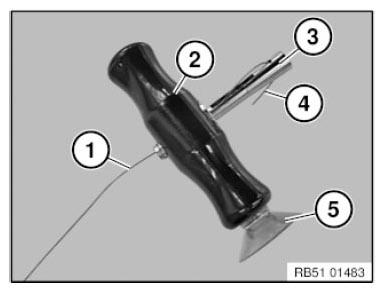

Fig 1: Feeding Cutting Wire In Cutting Handle And Clamping Element
G08508349Courtesy of BMW OF NORTH AMERICA, INC.

Cutting handle (2) can be secured with suction cup (5) to the vehicle window or body during each of the work operations.

This prevents damage to the paint.

Fit second wire pull handle to other wire end.

Perform repair work with the aid of a second person.

Cutting wire (4) must be guided in cutting direction at an acute as possible angle (>45°) to adhesive bead (1).

Cut through adhesive bead (1) by pulling cutting handle (2) and at the same time providing counter support with cutting handle (3).

Pull back cutting wire (4) with cutting handle (3) and make sure that cutting wire (4) is always held under tension.

Cut through remaining adhesive bead in the same way.

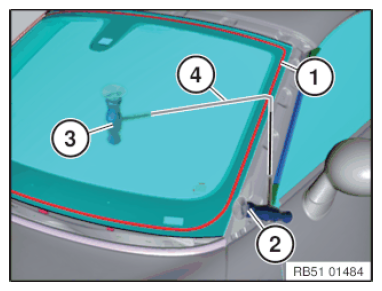

Fig 2: Identifying Adhesive Bead, Cutting Handle And Cutting Wire
G08508350Courtesy of BMW OF NORTH AMERICA, INC.
