37 12... Replacing ventilation line for air supply unit

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR BUMPER TRIM .

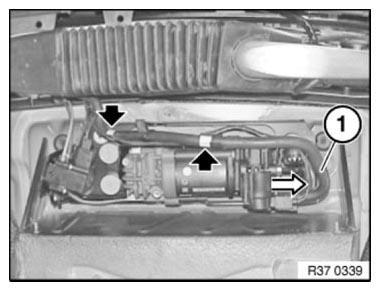

Detach ventilation line (1) in direction of arrow from air supply unit.

Unclip ventilation line (1) from holders.

Fig 1: Disconnecting Air Supply Unit Ventilation Line

Courtesy of BMW OF NORTH AMERICA, INC.

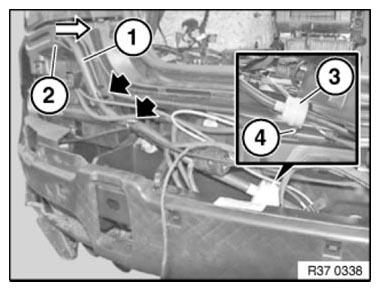

Remove air filter (3) from holder (4).

Unclip ventilation line (1) from holders.

Pull ventilation line (1) in direction of arrow out of bumper trim (2).

Fig 2: Pulling Ventilation Line Out Of Bumper Trim

Courtesy of BMW OF NORTH AMERICA, INC.
