To remove engine support side frame connection

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Following new body parts are required (refer to Electronic Parts Catalogue):

(1) Connection, wheel arch/entrance

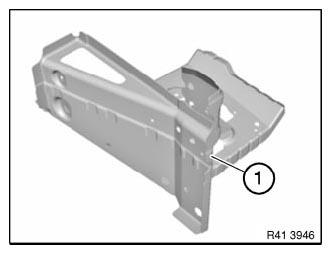

Fig 1: Identifying Wheel Arch/Entrance Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in areas (1).

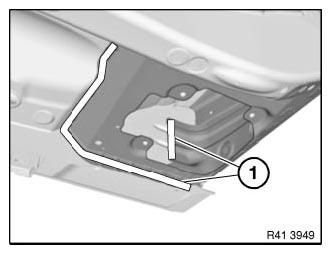

Fig 2: Identifying Engine Support Welded Connection Areas

Courtesy of BMW OF NORTH AMERICA, INC.

View from below:

Open welded connections in areas (1).

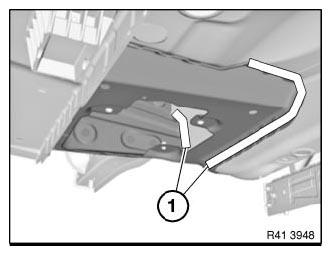

Fig 3: Identifying Engine Support Welded Connection Areas

Courtesy of BMW OF NORTH AMERICA, INC.

View from below:

Open welded connections in areas (1).

Remove wheel arch/entrance connection.

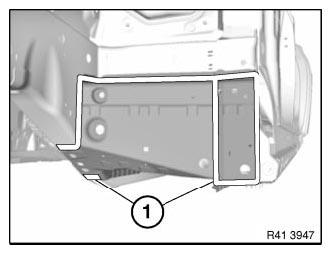

Fig 4: Identifying Wheel Arch/Entrance Connection Welded Connection Areas

Courtesy of BMW OF NORTH AMERICA, INC.
