54 37 ... Aligning basic gauge: Notes
WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 00 9 251
- 54 0 121
- 54 0 122
- 54 0 123
See .
IMPORTANT:
Always install and remove basic gauge with 2 helpers.
To prevent damaging the basic gauge, set the gauge down only in the transportation crate or on the vehicle side wall.
The basic gauge is a highly sensitive measuring instrument which reacts even to light impacts with distortion.
The basic gauge must be checked for dimensional accuracy on a master gauge after being subjected to impact or dropped.
To prevent damaging the basic gauge, set the gauge down only in the transportation crate or on the vehicle side wall.
The basic gauge is a highly sensitive measuring instrument which reacts even to light impacts with distortion.
The basic gauge must be checked for dimensional accuracy on a master gauge after being subjected to impact or dropped.
The basic gauge stipulates the basic setting in the X-, Y- and Z- axes.
The basic gauge is absolutely essential for the following work operations:
- Gauging coupling fastener
- Gauging roof module bracket

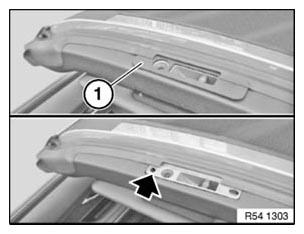

Lift out cover (1) on left base plate.
Installation:
Cover (1) for base plate must be replaced after each removal.
IMPORTANT:
The outer left hole in the base plate is the reference point for the following jobs.
