Special Tools Required
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.
- 41 0 000 PUNCH NUMBERS/LETTERS/SPECIAL CHARACTERS
- 41 1 140
- 41 1 141
- 41 1 142
NOTE:
If the stamped vehicle identification number is removed during repair work, it must be stamped in again.
Read and comply with General Information . Refer to 41 00... Vehicle Identification Number, General
Necessary preliminary tasks:
- Remove front right spring strut . Refer to 31 31 000 REMOVING AND INSTALLING COMPLETE LEFT OR RIGHT SPRING STRUT SHOCK ABSORBER and/or 31 31 000 REMOVING AND INSTALLING COMPLETE LEFT OR RIGHT SPRING STRUT SHOCK ABSORBER .
- Remove rubber base from guide plate 41 1 141

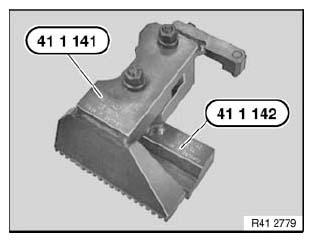

Special tool kit 41 1 140 for stamping vehicle identification number consists of:
Guide plate 41 1 141
Counter-plate 41 1 142

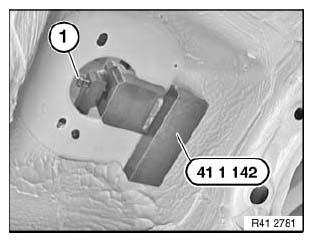

Position counter-plate 41 1 142 at bottom on spring strut dome.

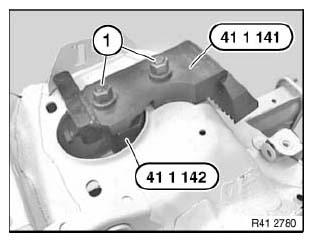

Position guide plate 41 1 141 at top on spring strut dome and tighten bolts (1) by hand.
Tighten bolt (1) until counterholder 41 1 142 rests on spring strut dome.
Tighten screws (1).
NOTE:
The illustration is a schematic representation and is to be applied to the relevant vehicle type.

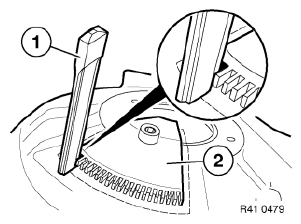

Insert punch numbers 41 0 000 (1) individually into guide plate (2) and stamp vehicle identification number.
NOTE:
In the event of component or body replacement by the workshops/garages, clearly delimit the vehicle identification number at front and rear by stamping a "+" in place of the BMW emblem.
Note national regulations.
