Control Arm: Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support front of vehicle. Remove front wheel.

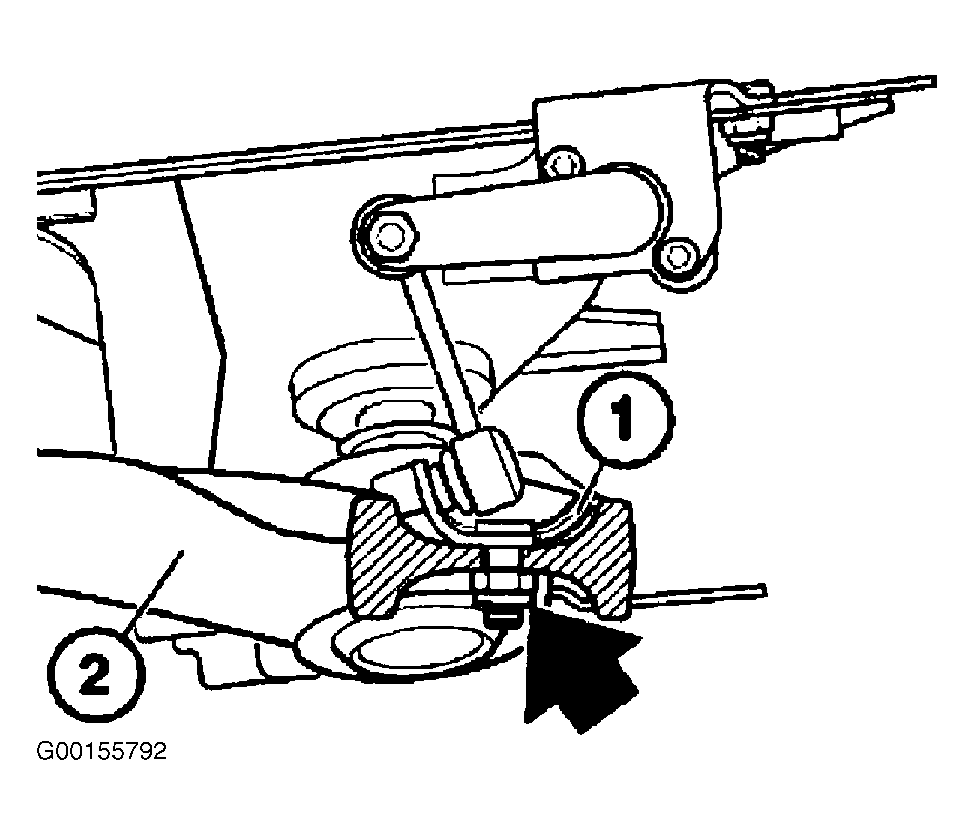

  2. Remove retaining bracket (1) of angle joint from control arm (2). See Figure .

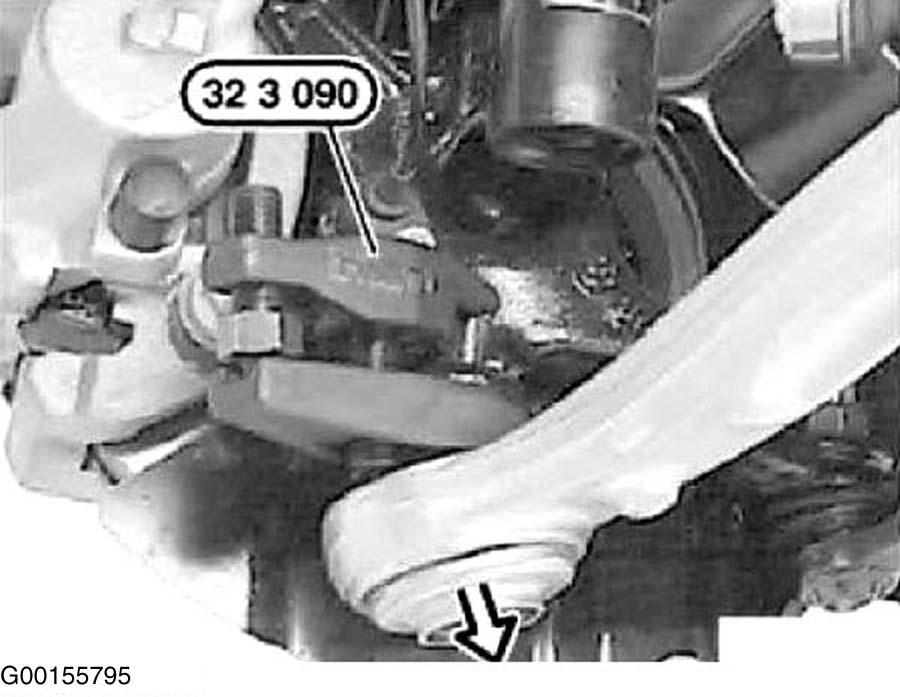

  3. Unfasten nut. Press control arm off steering knuckle with special tool (32 3 090). See Figure . Reconnect ball-and-socket joint with wheel carrier and secure with nut against falling out.

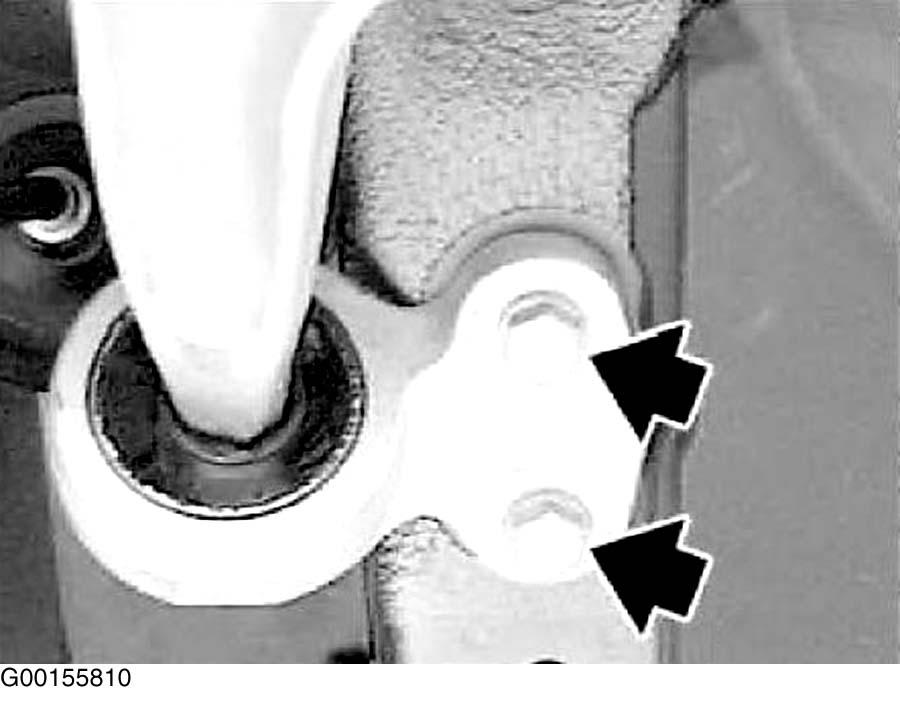

  4. Remove control arm bracket from engine support. See Figure .
  5. Unfasten nut. Strike off control arm ball joint with plastic hammer. Take off control arm.
  6. If replacing control arms, derust the stub axle in the area of the contact face of the rubber sleeve and replace brackets. See CONTROL ARM BRACKETS  .
