54 10... Removing and Installing/Replacing Drive Cable Plate

WARNING: This page is about a different car, the 2010 BMW X5, 2009 BMW X5, 2008 BMW X5, and 2007 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove mechanism for glass cover at front. See 54 10 020 Removing and Installing Mechanism For Front Glass Lid

Overview of glass lid mechanism:

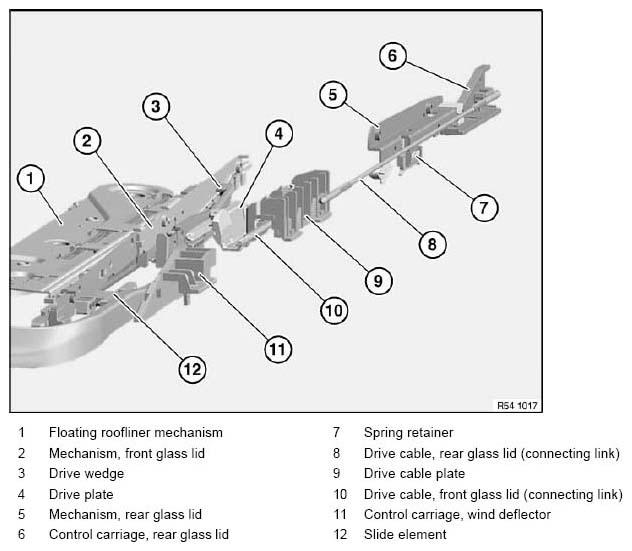

Fig 1: Identifying Glass Lid Mechanism Components

Courtesy of BMW OF NORTH AMERICA, INC.

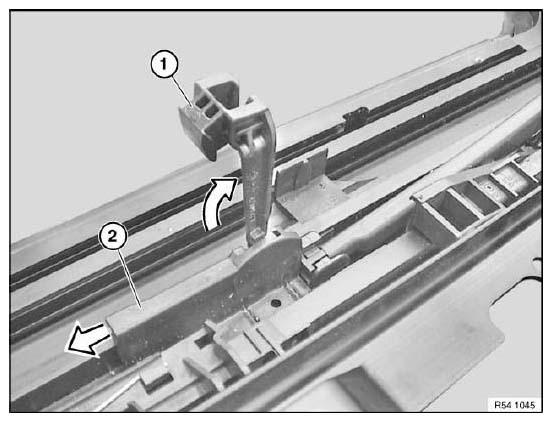

Fig 2: Removing Drive Wedge

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, remove drive wedge (1).

If necessary, slide drive cable plate (2) towards rear and remove from guide rail.

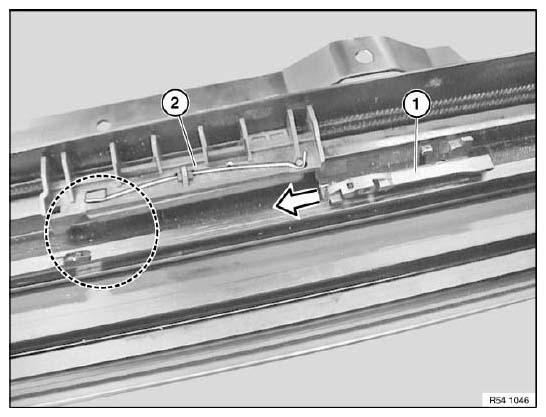

Fig 3: Sliding Drive Cable Plate

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage when installing drive cable plate

The rear drive cable plate (2) must be engaged before the front drive cable plate (1) is installed.

Incorrect setting can be identified from spring position and lever position (marked area).

Check engagement of rear drive cable plate (2) in guide rail.

Slide in drive cable plate (1).
