Section 1310 (Rear Axle - Repair)
>>
00 General
>>
33 10 ... Overview Of Rear Differential/Output Shafts
33 10 ... Overview Of Rear Differential/Output Shafts
WARNING:
This page is about a different car, the 2007 BMW 550i and 2006 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

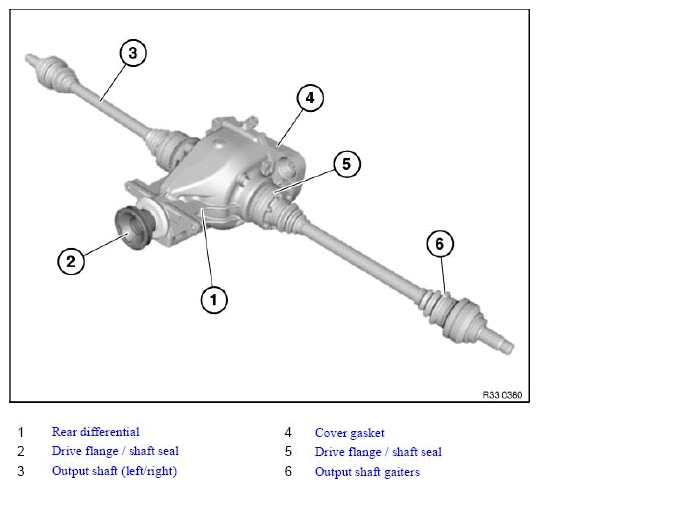

Fig 1: Identifying Rear Differential/Output Shafts Components
Courtesy of BMW OF NORTH AMERICA, INC.
