16 11... Replacing left or right clamping band

IMPORTANT: Secure fuel tank against slipping and falling out.

Heavily support the fuel tank.

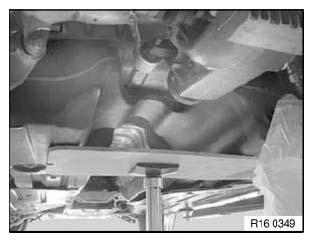

Fig 1: Supporting Fuel Tank

Courtesy of BMW OF NORTH AMERICA, INC.

Release expansion rivets (1).

Release screws (2) and remove clamping band.

Installation:

Tightening torque 16 11 5AZ .

Fig 2: Identifying Expansion Rivets And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
