12 13 513 Replacing ignition coil
Necessary Preliminary Tasks:
- Switch off ignition.
- Read out fault memory of DME control unit.
- Check stored fault messages.

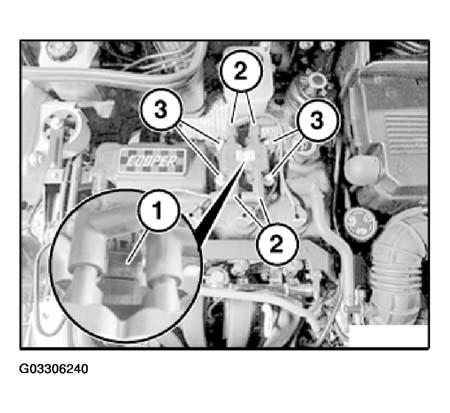

Unlock plug (1) and remove.
Detach ignition cable (2) from ignition coil.
Release screws (3).
Installation:

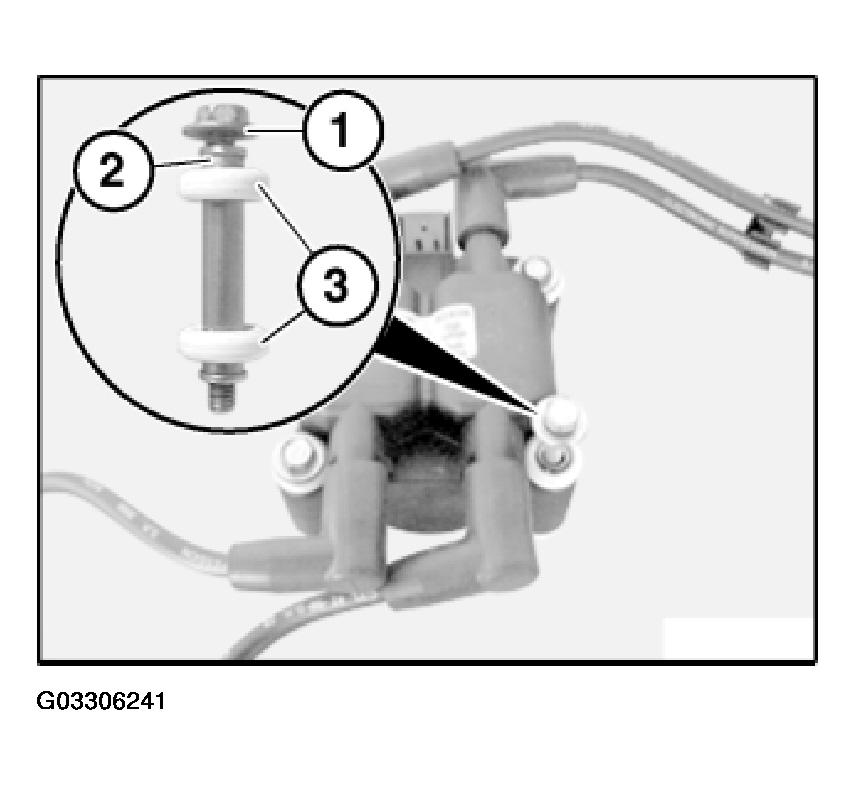

Screw (1) and spacer tube (2) are only available as a single set.
Check insulating rings (3), replace if necessary.
Tightening torque, refer to 12 13 1AZ in ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES - COOPER (1.6L) R50/W10 .
NOTE:
Now clear the fault memory.
