A/C O-Ring Tool (M04 15 09)

Publication date: 2009-10-29
Reference number: M04 15 09

A/C O-RING TOOL

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI M04 15 09, Date of Issue: October 29, 2009

MINI:	All
GROUP:	Tools and Equipment

SUBJECT

A/C O-ring Tool

SITUATION

Distribution of the following tool will be through the Automatic Tool Shipment Program. Tools may be purchased through your Regional Distribution Center (RDC).

A/C O-ring Tool

Order P/N 83 30 0 496 714

Cartool P/N 009 030

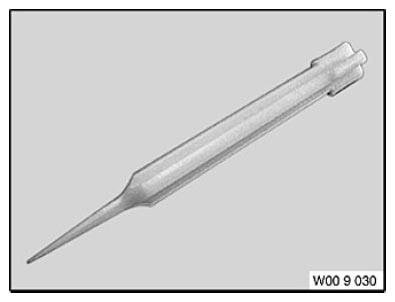

Fig 1: A/C O-ring Tool

This special plastic tool is designed to remove the O-ring from the A/C line without damage to the aluminum housing.

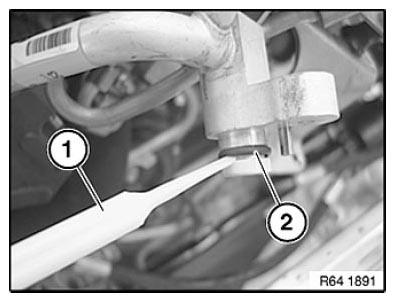

Fig 2: Removing O-ring From A/C Line
