11 00 039 Checking compression at all cylinders

Special tools required:

NOTE: Read out fault memory of EMS/DME control unit, check stored fault messages, rectify faults and clear fault memory.

Switch off ignition.

CAUTION: High tension - danger!
Interrupt voltage supply to ignition coils.

Detach plug connector from ignition coil unit.

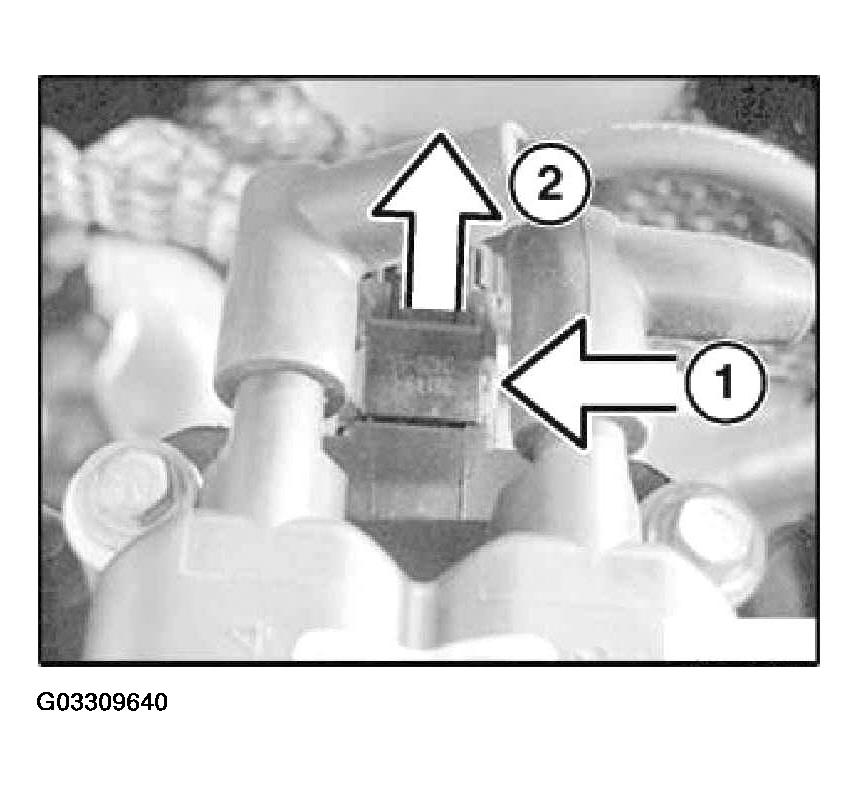

Fig 1: Detaching Plug Connector From Ignition Coil Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Press securing clip (1) away.

Detach plug connector (2).

Unscrew all spark plugs. Refer to 12 12 011 REPLACING ALL SPARK PLUGS .

Screw special tool 11 8 490 into spark plug thread and connect special tool 11 0 224.

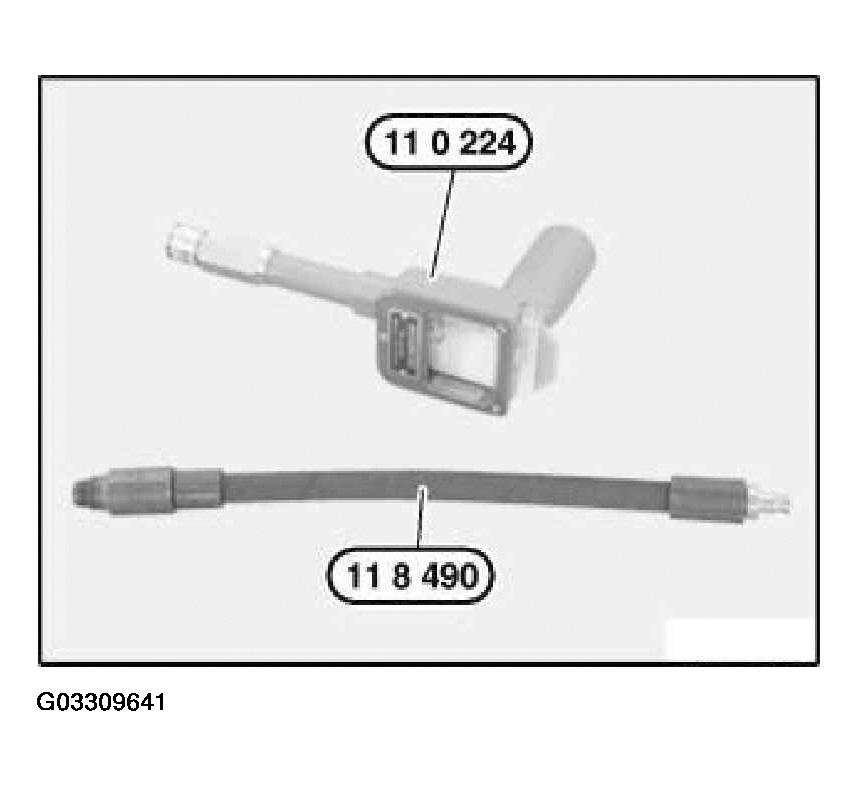

Fig 2: Identifying Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Make sure seal of adapter tool is in proper working order.

Press accelerator pedal to floor and actuate starter motor until compression pressure stops rising.

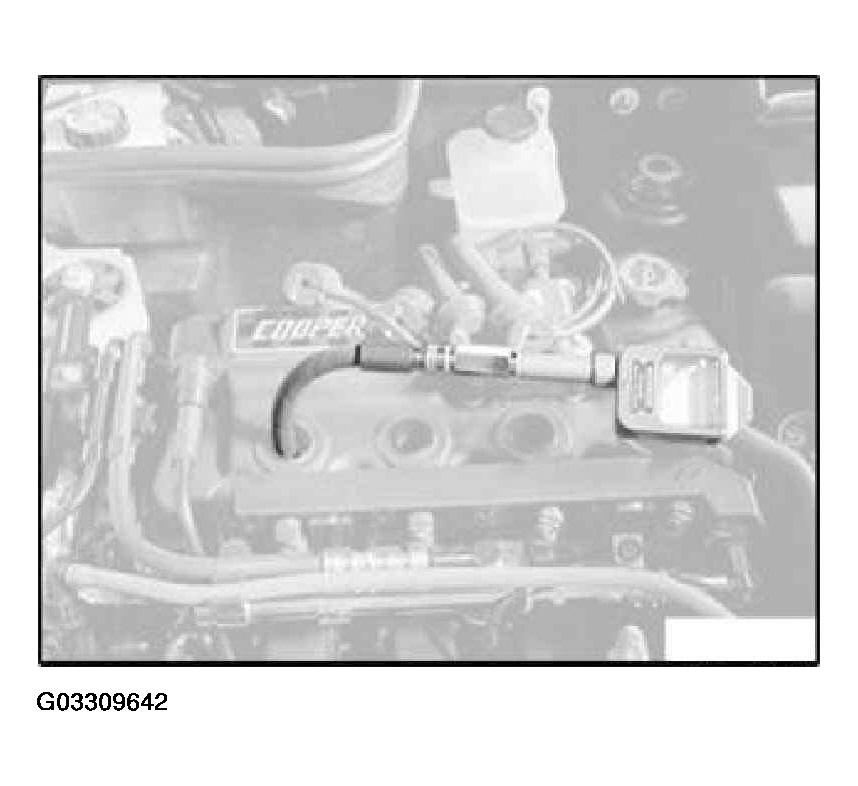

Fig 3: Testing Compression

Courtesy of BMW OF NORTH AMERICA, INC.

Compression pressure, Refer to ENGINE - TECHNICAL DATA .

NOTE: Disconnect ignition unit; this results in a defect trouble code being output during starting.

Connect DIS and delete stored faults.

NOTE: Read out fault memory of EMS/DME control unit, check stored fault messages, rectify faults and clear fault memory.
