Refrigerant System (IHKS and IHKA): Receiver/Drier

A receiver/drier integrated in the condenser assembly removes moisture and solid impurities from the refrigerant, and provides a reservoir of liquid refrigerant to accommodate flow changes at the evaporator.

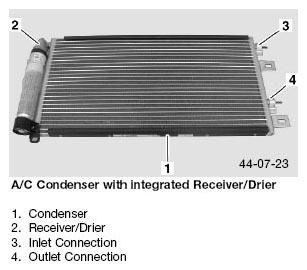

Fig 1: Identifying Condenser, Inlet Connection And Outlet Connection

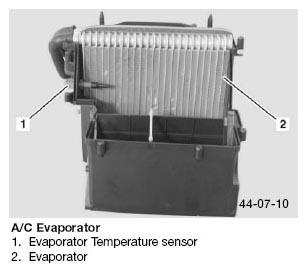

Fig 2: Identifying Evaporator Temperature Sensor And Evaporator
