Cooling Fans - Repair
>>
Wiring Diagrams
Wiring Diagrams

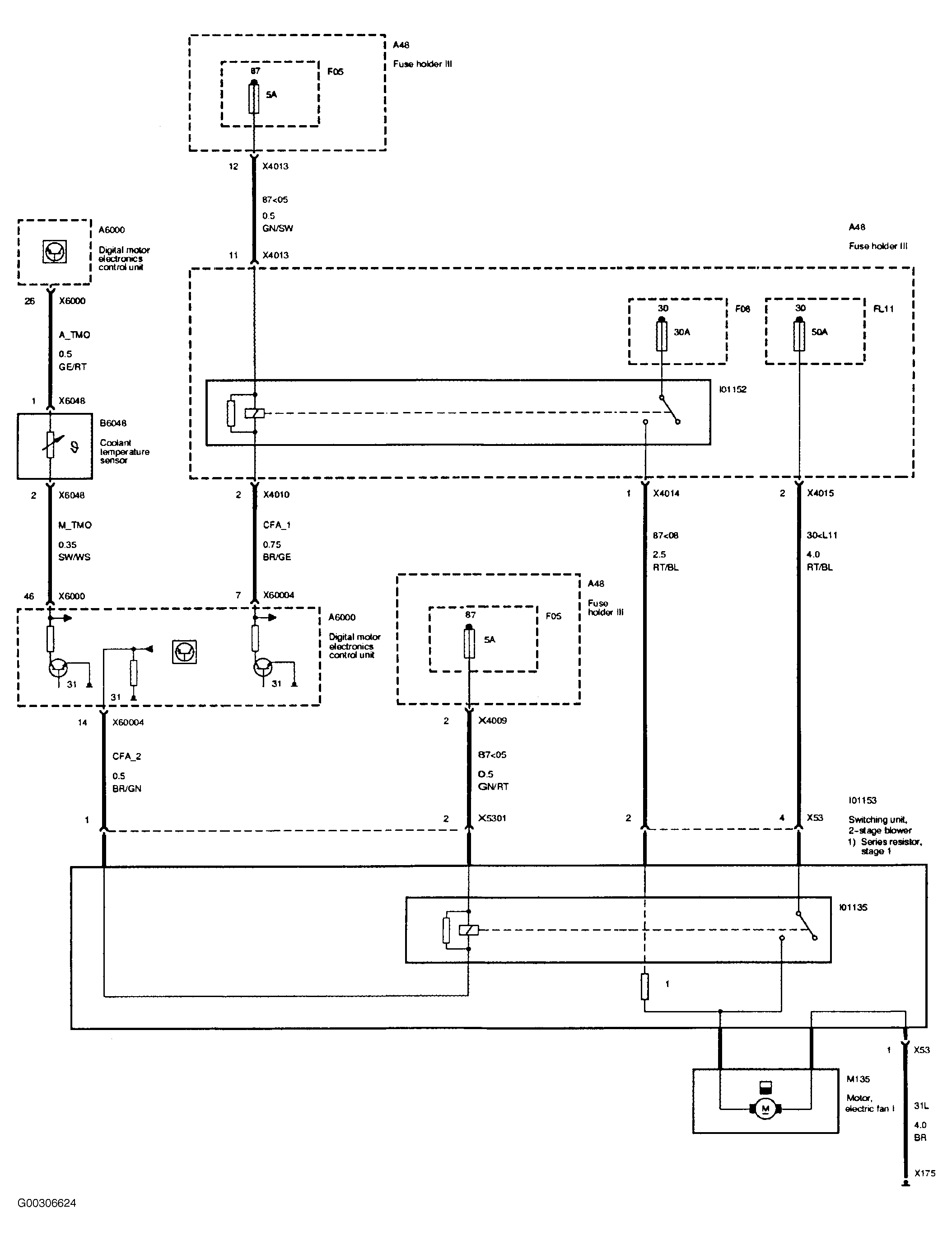

Fig 1: Cooling Fan System Wiring Diagram (Cooper)
Courtesy of BMW OF NORTH AMERICA, INC.

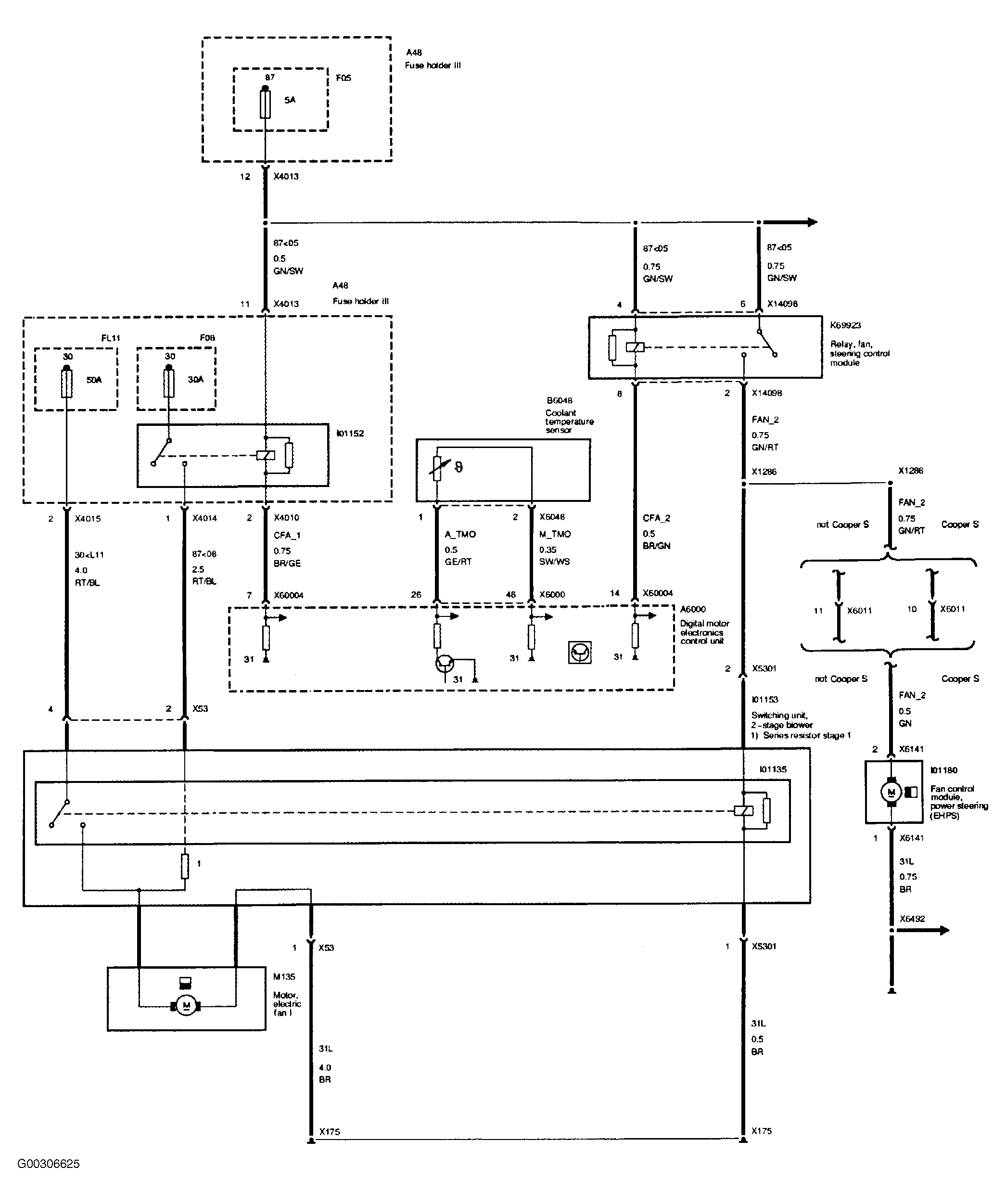

Fig 2: Cooling Fan System Wiring Diagram (Cooper S)
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
