MINI COOPER S Only

MINI COOPER S models utilize the two Fuse Boxes as on the MINI COOPER and add a third fusebox. The third fusebox contains a single 250 amp fuse and is located in the rear of the vehicle near the battery compartment.

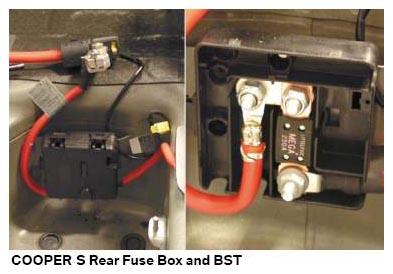

Fig 1: Cooper S Rear Fuse Box And BST
G04730695Courtesy of BMW OF NORTH AMERICA, INC.

MINI COOPER S models are equipped with an additional fusebox that carries a single 250A fusible link. The box is located adjacent to the battery in the luggage compartment.

COOPER S battery is fitted with a BST for the main power cable.
