Removal and Installation
WARNING: This page is about a different variant/trim than selected.
- With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING article.
- Disconnect the Catalyst Monitor Sensor (CMS) electrical connector.

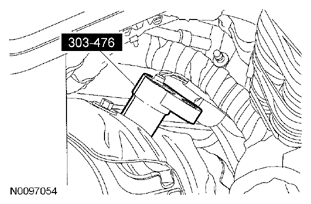

- Using the Exhaust Gas Oxygen Sensor Socket, remove the CMS.
- Calculate the correct torque wrench setting for the following torque.
Refer to the appropriate Torque Wrench Adapter Formulas in the illustration below.
- To install, tighten to 48 Nm (35 lb-ft).
- Calculate the correct torque wrench setting for the following torque.
- To install, reverse the removal procedure.
NOTE:
If necessary, lubricate the sensor threads with penetrating and lock lubricant to assist in removal.
NOTE:
Apply a light coat of anti-seize lubricant to the threads of the CMS.
