Rear Lamp Assembly: Notes
WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

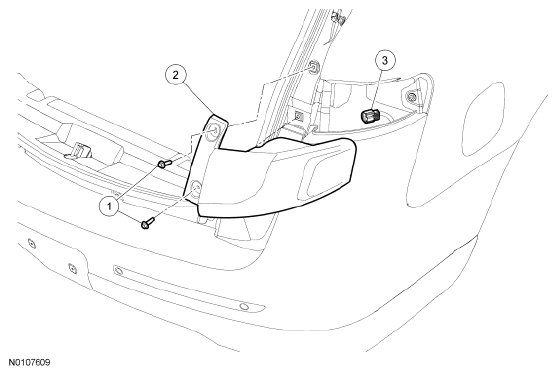

Fig 1: Identifying Rear Lamp Assembly (LH/RH), Rear Lamp Assembly Screws And Rear Lamp Assembly Electrical Connectors
| Item | Part Number | Description |
|---|---|---|
| 1 | W712801 | Rear lamp assembly screws (2 required) |
| 2 | 13405/13404 | Rear lamp assembly (LH/RH) |
| 3 | - | Rear lamp assembly electrical connectors (part of 14A005) |
