Powertrain Control Module (PCM): Pcm

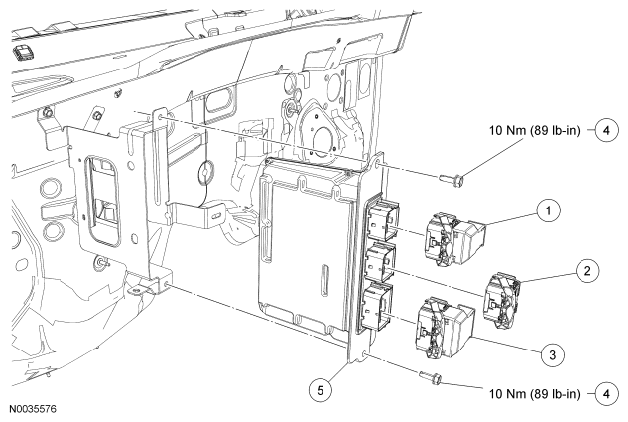

Fig 1: Powertrain Control Module With Torque Specifications
G06402289Courtesy of FORD MOTOR CO.
PART NUMBER REFERENCE

Item Part Number Description
1 14A464 PCM electrical connector (part of 12B637)
2 14A464 PCM electrical connector (part of 14398)
3 14A464 PCM electrical connector (part of 12B637)
4 N806972 PCM bolts (2 required)
5 12A651 PCM
