A/C Tube Brackets

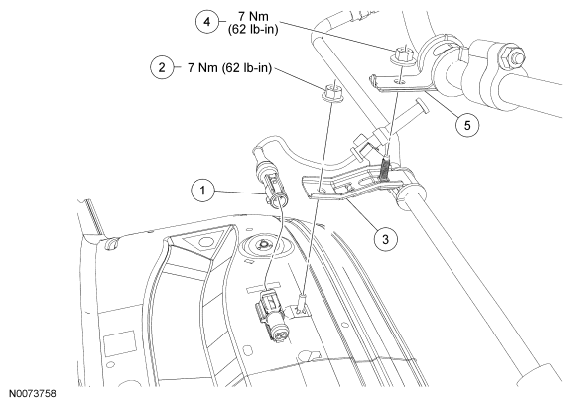

Fig 1: A/C Tube Brackets With Torque Specifications

Courtesy of FORD MOTOR CO.

PART NUMBER REFERENCE

Item	Part Number	Description
1	2C204	RH front wheel speed sensor electrical connector
2	N621905	A/C tube bracket nut
3	-	A/C tube bracket (part of 19N651)
4	N705760	A/C tube bracket nut (4.6L [3V] only)
5	-	A/C tube bracket (part of 19N617) (4.6L [3V] only)
