Restraints Control Module Connector End View - C310B

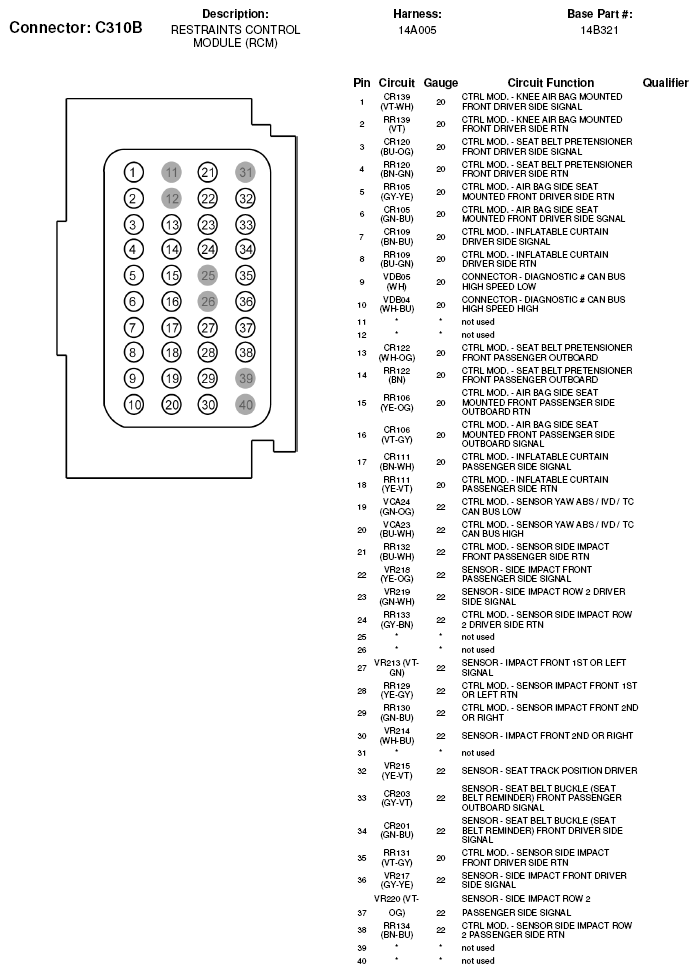

Fig 1: Restraints Control Module Connector End View (C310B)

G06353009

Courtesy of FORD MOTOR CO.
