Power Steering Control Module Connector End View - C1467B

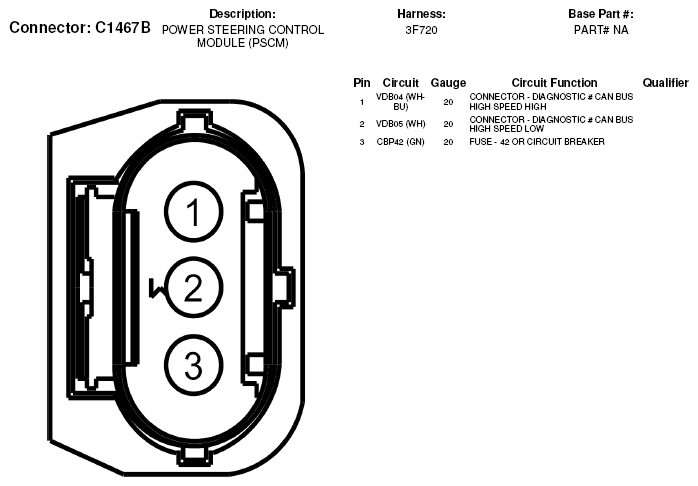

Fig 1: Power Steering Control Module Connector End View (C1467B)

G06353158

Courtesy of FORD MOTOR CO.
